HYDROWASH

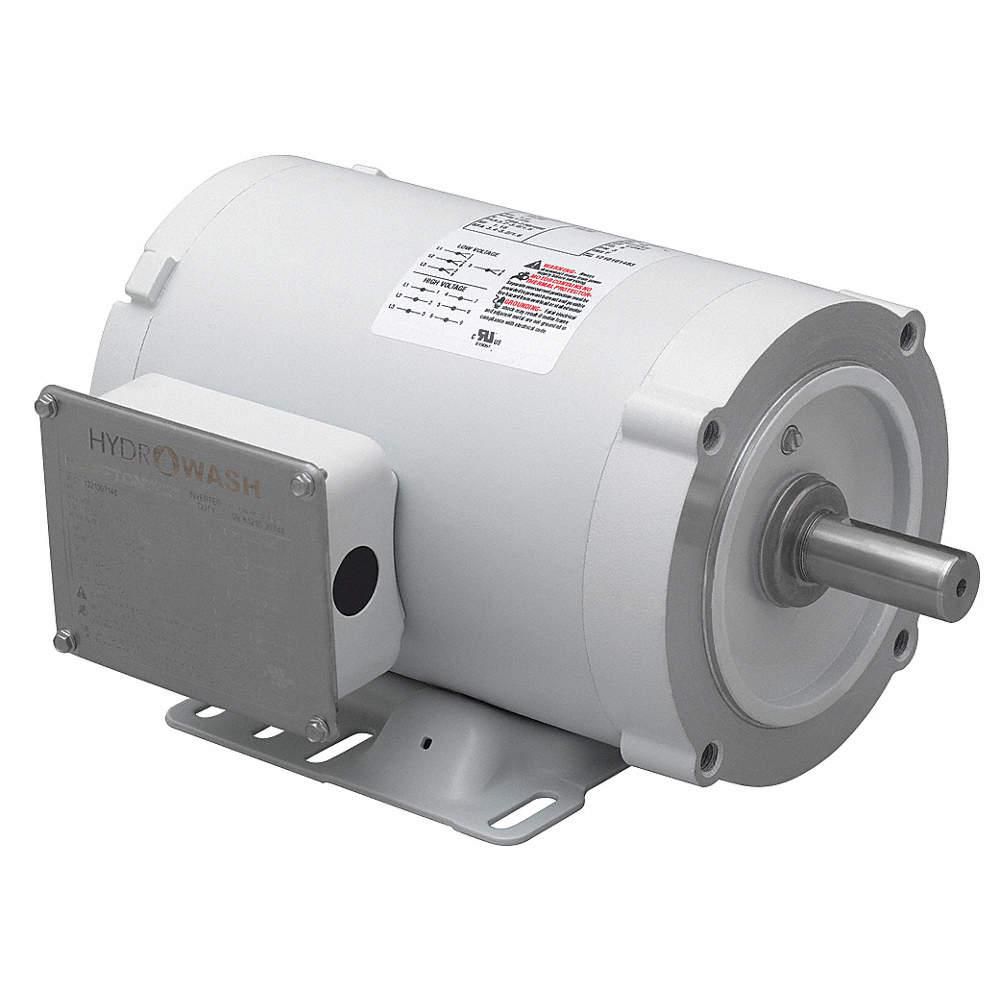

Hydrowash Washdown Motor, 2 HP, Epoxy Finish, 3-Phase, Nameplate RPM 1,725, Voltage 230/460V AC

Hover over image to magnify
Washdown Motor,2 Hp,1725,56C,
Washdown Motor,2 Hp,1725,56C,
Double tap image to magnify
Washdown Motor,2 Hp,1725,56C,
Washdown Motor,2 Hp,1725,56C,

#936796-6Pkg Qty: 1

$983.00 pkg | $983.00 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 07.
|

Technical Specifications

Key Specifications
Bearings
Ball
Motor Type
3-Phase
Brand
HYDROWASH
Mounting
Face/Base
Duty
Continuous
NEMA/IEC Frame
56C
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
14-1/2 in.
Finish
Epoxy
Package Quantity
1
Footnotes
Inverter Duty
Phase
Three
Frame
56C
Rotation
CW/CCW
Full Load Amps
5.6/2.8
Service Factor
1.15
Hz
60
Shaft Length
2 in.
Insulation Class
F
Shaft Material
Stainless Steel
Item
Washdown Motor
Shipping Weight
46.1 lb.
Length Less Shaft
12-1/2 in.
Thermal Protection
None
Mfr. Part Number
1311017161
Voltage
230/460 VAC
Motor Design
3-Phase
General
Application
Wet Environments
Motor Efficiency Group
NEMA Premium Efficient
CC Number
CC029A
Motor Frame Material
Steel
Complies With
NEMA MG1 Part 31
Motor Shaft Design
Keyed
Conduit Box
Epoxy Painted Steel
Motor Shaft Rotation
CCW, CW
Drain Plugs
Breather Vent
No. of Speeds
1
Endshield Material
Epoxy Painted Cast Iron
Nominal Efficiency
86.4 %
Endshields
Epoxy-Painted Cast Iron
RPM Range
1,701-1,800
Includes
Splice Kit
Shaft Dia.
5/8 in
Max. Ambient Temp.
40 °C
Standards
UL Recognized
Motor Application
Washdown
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

Painted epoxy-coated washdown AC motors have a white epoxy finish that is USDA approved and is resistant to caustic cleaning solutions.
