TB WOOD'S

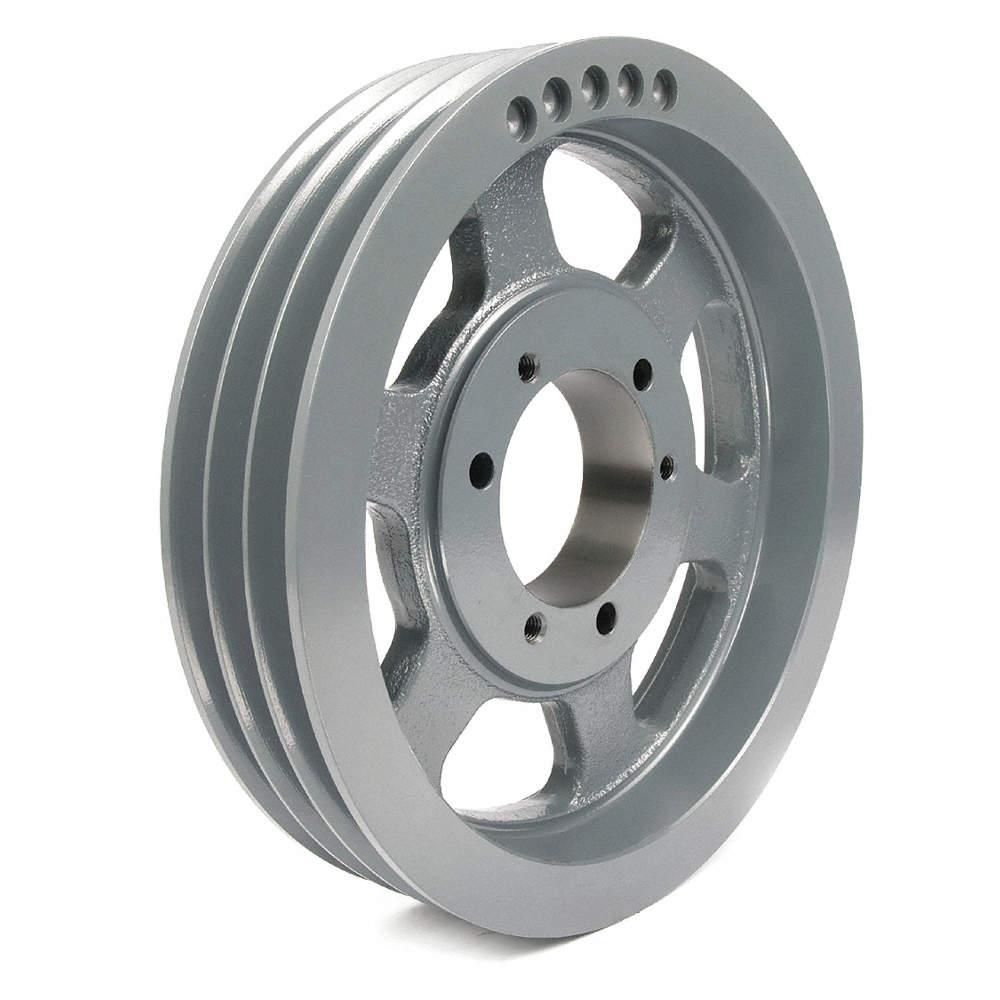

Tb Wood'S Standard V-Belt Pulley: 3 Grooves, 12.75" Pulley Outside Dia., Cast Iron

Hover over image to magnify
V-Belt Pulley,Detachabl,
V-Belt Pulley,Detachabl,
Double tap image to magnify
V-Belt Pulley,Detachabl,
V-Belt Pulley,Detachabl,

#936786Pkg Qty: 1

$304.80 pkg | $304.80 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Brand
TB WOOD'S
Mfr. Part Number
1243B
Construction
Arm
Package Quantity
1
Industry Number
1243B
Shipping Weight
21.1 lb.
Item
Standard V-Belt Pulley
General
4L Pitch Diameter
12.25 in
For Bushing Size
SK
4L or A Belt Pitch Dia. (In.)
12
For Bushing Type
Quick Detachable
4L, A, or AX Belt Pitch Dia.
12 in
For V-Belt Section
4L, 5L, A, AX, B, BX
5L Pitch Diameter
12.813 in
For V-Belt Type
Banded, Classical, Cogged
5L or B Belt Pitch Dia. (In.)
12.4
Groove
3
5L, B, or BX Belt Pitch Dia.
12.4 in
Length through Bore
1 7/8 in
A Pitch Diameter
12.25 in
Material Fabrication
Cast
AX Pitch Diameter
12.25 in
Maximum Bore Diameter
2 1/2 in
B Pitch Diameter
12.813 in
Minimum Bore Diameter
1/2 in
BX Pitch Diameter
12.813 in
Number of Grooves
3
Bore Type
Bushed
Outside Dia.
12.75"
Bushing Required
SK
Outside Dia. (In.)
12.75
Face Diameter
12.75 in
Pitch Diameter
12.81 in
Face Width
2.5 in
Pitch Diameter for V-Belt Section
4L: 12.25 in / 5L: 12.813 in / A: 12.25 in / B: 12.813 in
Fits Shaft Dia.
1/2 in to 2-1/2 in
Pulley Bore Type
Quick Detachable Bushed Bore
For Belt Family
Classical Cogged, Classical, Fractional Horsepower
Pulley Material
Cast Iron
For Belt Trade Size
4L, 5L, A, AX, B, BX
Pulley Outside Dia.
12.75 in

Product Description

TB WOOD’S® standard V-belt pulley is designed for use with single or banded V-belts with either wrapped or cogged construction.

  • Number of grooves: 3
  • Fine-grain, high-tensile cast-iron construction
  • Quick-detachable bushed bore
  • Require bushings, sold separately
  • Not for use with banded A belts
