JET

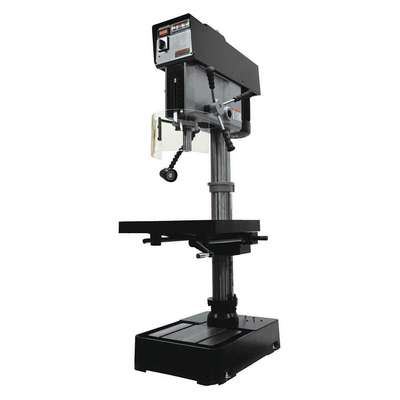

Jet Floor Drill Press: Belt, Variable, 300 RPM û 2,000 RPM, 115/230 VAC /Single-Phase, 20" Swing

Hover over image to magnify
Floor Drill Press,25/13 Amps
Floor Drill Press,25/13 Amps

#936783-4 | Pkg Qty: 1

$5,627.59 pkg | $5,627.59 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
25.0/13.0
Overall Depth
38-3/16 in.
Application
Drilling, Tapping
Overall Height
79-35/64 in.
Brand
JET
Overall Width
27-5/32 in.
Chuck Size
Not included
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
780 lb.
Horsepower
2 HP
Speed Control
Variable
Hz
60
Swing
20 in.
Item
Floor Drill Press
Voltage
115/230
Mfr. Part Number
JDP-20VS-1
General
Chuck Style
Keyed
Maximum Spindle-to-Table Height
30 1/4 in
Column Diameter
4 1/2 in
Minimum Spindle Speed
300 RPM
Current
25/13 A
Nominal Voltage
115/230V AC
Drill Press Application
Drilling
Quill Diameter
2 61/64 in
Drill Press Type
Floor Stand
Speed Adjustment
Mechanical Variable Speed Drive System
Drill Spindle Travel
6 in - 7 in
Speed Range
300 to 2,000 RPM
Drilling Capacity in Cast Iron
1 1/4 in
Spindle Speed Range
300 RPM - 2,000 RPM
Drilling Capacity in Stainless Steel
3/4 in
Spindle Travel
6"
Drilling Capacity in Steel
1 in
Spindle-to-Column Distance
10 7/16 in
Drilling Capacity in Wood
1 1/4 in
Table Length
22 in
Guard Included
Yes
Table Load Capacity
154 lb
Includes
Crank Handle, Drift Key, Socket Wrench
Table Slot
Yes
Maximum Overall Height
79 1/2 in
Table Slot Width
5/8 in
Maximum Spindle Speed
2,000 RPM
Table Width
18 3/4 in
Maximum Spindle-to-Base Height
44 1/2 in
Tapping Compatible
Yes

Product Description

Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20", Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1", Capacity Cast Iron 1 1/4", Drilling Capacity Wood Not Specified, Includes Crank Handle, Drift Key, Socket Wrench, Power Down Feed Included No, Voltage 115/230, Amps AC 25.0/13.0, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 300 to 2000 rpm, Spindle Travel 6", Base Size 27 in x 19", Table Work Surface 22 in x 18-1/2", Hz 60, Phase 1

Item Barcode
9367834
Floor Drill Press,25/13 Amps
 NameItemDescription
Grainger DropshipGrainger Dropship53ZC49
UNSPSC CODESUNSPSC CODES27112703
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
