DAKE CORPORATION

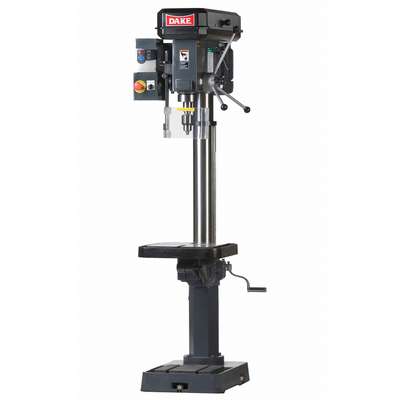

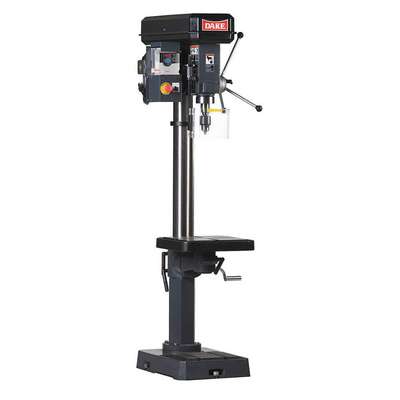

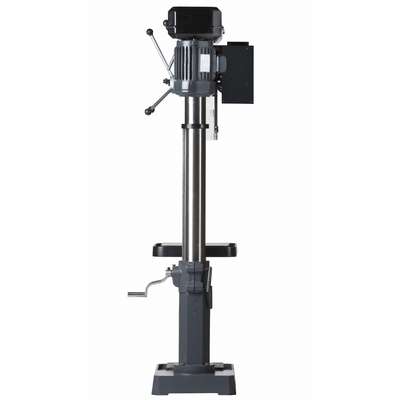

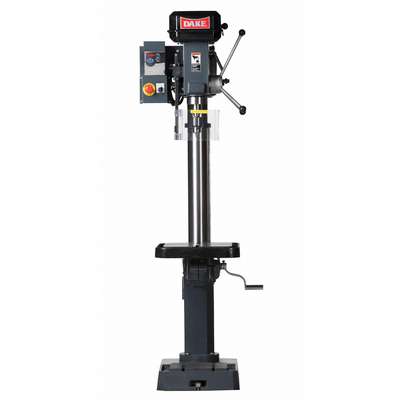

Dake Corporation Floor Drill Press: Belt, Variable, 46 RPM – 3, 473 RPM, 115 VAC /Single-Phase, 9"

Hover over image to magnify
Floor Drill Press,Belt,18",2
PI_Asset_1758055
PI_Asset_1762466
PI_Asset_1772075
Floor Drill Press,Belt,18",2
PI_Asset_1758055
PI_Asset_1762466
PI_Asset_1772075
Double tap image to magnify
Floor Drill Press,Belt,18",2
35GW74_2
35GW74_1
35GW74_3
Floor Drill Press,Belt,18",2
35GW74_2
35GW74_1
35GW74_3

#936772-2Pkg Qty: 1

$4,117.98 pkg | $4,117.98 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 21.
|

Technical Specifications

Key Specifications
Amps AC
20
Overall Depth
23-5/8 in.
Application
General Purpose Drill Press
Overall Height
71 in.
Brand
DAKE CORPORATION
Overall Width
15 in.
Chuck Size
5/8 in.
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
673 lb.
Horsepower
2 HP
Speed Control
Variable
Hz
60
Swing
18 in.
Item
Floor Drill Press
Voltage
120
Mfr. Part Number
977400-1V
General
Chuck Style
Keyed
Maximum Spindle-to-Table Height
26 1/4 in
Column Diameter
4 in
Minimum Spindle Speed
46 RPM
Current
20 A
Nominal Voltage
115V AC
Drill Press Application
Drilling, Tapping
Quill Diameter
3 1/4 in
Drill Press Type
Floor Stand
Speed Adjustment
Knob
Drill Spindle Travel
5 in - 6 in
Speed Range
46 to 3,473 RPM
Drilling Capacity in Steel
1 1/4 in
Spindle Speed Range
46 RPM - 3,473 RPM
Drilling Capacity in Wood
1 1/4 in
Spindle Travel
5 1/4 in
Guard Included
Yes
Spindle-to-Column Distance
9 in
Includes
5/8 in Keyed Chuck, Drift for Bit Removal, HDPE Chip and Chuck Guard
Table Length
15 3/4 in
Maximum Overall Height
71 in
Table Slot
Yes
Maximum Spindle Speed
3,473 RPM
Table Width
15 3/4 in
Maximum Spindle-to-Base Height
50 in
Tapping Compatible
Yes

Product Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 18", Spindle Taper 4MT, Motor HP 2 hp, Capacity Steel 1 1/4", Capacity Cast Iron Not Specified, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Drift, Keyed Chuck, Power Down Feed Included No, Voltage 120, Amps AC 20.0, Number of Speeds Variable, Chuck Size 5/8", Spindle Speed 46 to 3473 rpm, Spindle Travel 5 1/4", Base Size 15 in x 23-5/8", Table Work Surface 15-3/4 in x 15-3/4", Hz 60, Phase 1

Item Barcode

9367722
Floor Drill Press,Belt,18",2
