CLE-LINE

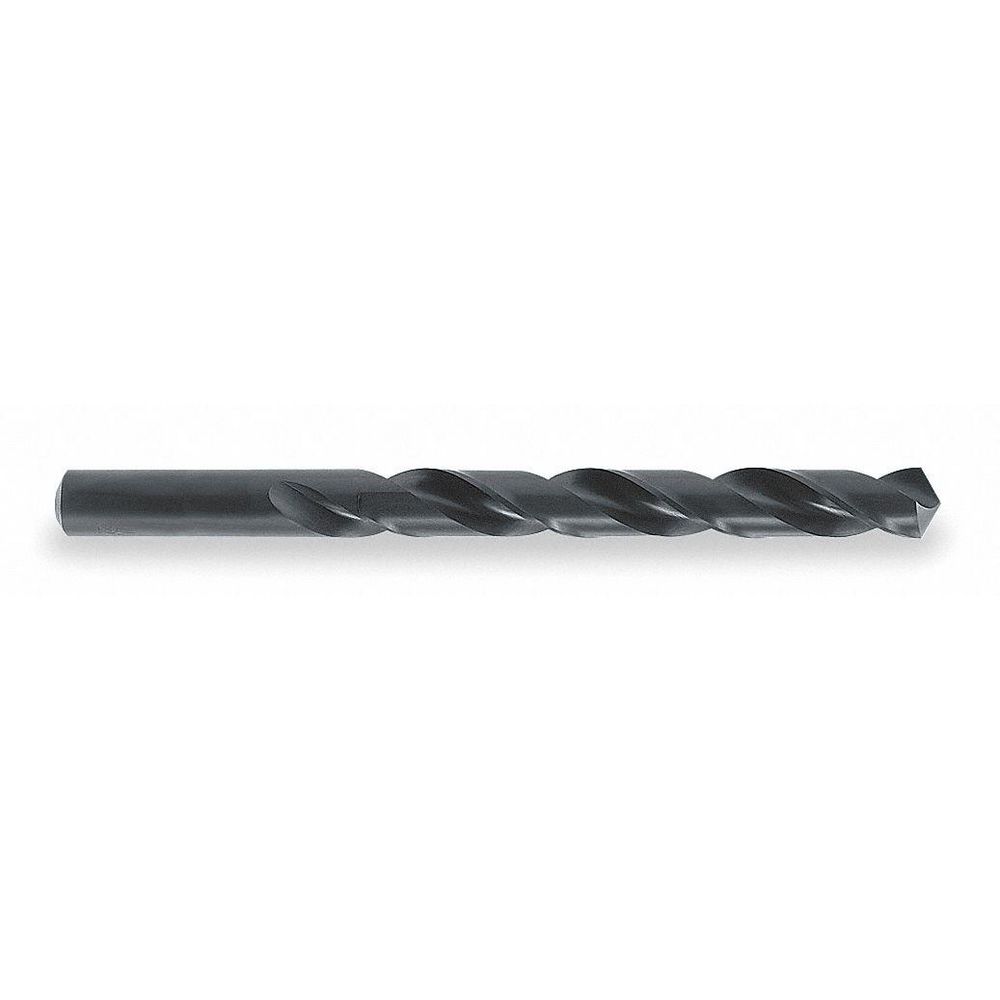

Cle-Line Jobber Length Drill Bit: 25/64 in Drill Bit Size, 3 3/4 in Flute Lg, 25/64 in Shank Dia.

Hover over image to magnify
Jobber Drill,25/64",Hss
Jobber Drill,25/64",Hss
Cle-Line Jobber Length Drill Bit: 25/64 in Drill Bit Size, 3 3/4 in Flute Lg, 25/64 in Shank Dia. Video

#936750-9 | Pkg Qty: 1

$7.00 pkg | $7.00 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
1899
Decimal Equivalent
0.3906
Maximum Drilling Depth
1 9/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C22505
Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
5 1/8 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Angle
118 deg.
Drill Bit Size
25/64 in.
Point Type
Conventional Point
Drill Point Length
0.1174 in.
Series
1899
Finish
Black Oxide
Shank Diameter
3/8 in.
Flute Length
3-3/4 in.
Shank Length
1 3/8 in.
Flute Type
Spiral
Shank Type
Straight
Grade
General Purpose
Shipping Weight
.1 lb.
Helix Angle
21° to 34°
Spiral Direction
Right Hand
General
Application
For Carbon Steel And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, N, P
Drill Bit Point Type
Conventional Point
Shank Dia.
3/8 in
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME B94.11M
Finish - Machining
Black Oxide

Product Description

These drill bits come in standard sizes expressed in fractional inches. They have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. The bits' spiral flutes evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.

Item Barcode
9367509
Jobber Drill,25/64",Hss
 NameItemDescription
Grainger DropshipGrainger Dropship5X980
UNSPSC CODESUNSPSC CODES23241605
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Jobber Drill, 25/64",HSS
