KH INDUSTRIES

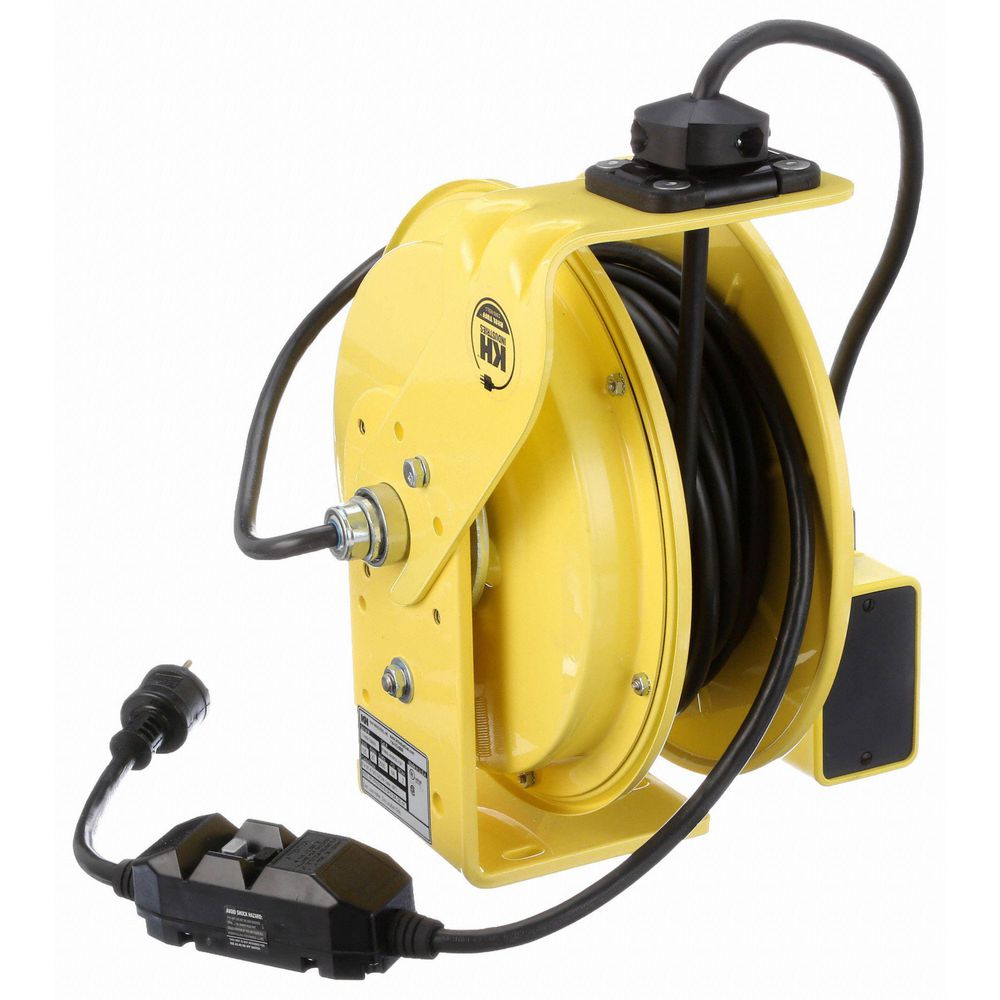

KH Industries 50 ft. Extension Cord Reel; Heavy Duty Gauge; 120 VAC; Yellow Reel Color

Hover over image to magnify
Cord Reel,50ft,12 Awg,
PI_Asset_1765055
Cord Reel,50ft,12 Awg,
PI_Asset_1765055

#936736 | Pkg Qty: 1

$987.97 pkg | $987.97 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
KH INDUSTRIES
NEMA Plug Configuration
5-20P
Cord Color
Black
NEMA Receptacle Configuration
5-20R
Cord Ending NEMA Configuration
5-20R
Number of Conductors
3
Cord Included
Yes
Number of Outlets
2
Cord Length
50 ft.
Overall Depth
12 in.
Cord Type
SJ
Overall Height
13-13/16 in.
Depth
12 in.
Overall Width
7-3/4 in.
Description/Special Features
Duplex GFCI
Package Quantity
1
Enclosed Reel
No
Reel Color
Yellow
Enclosure Rating
NE mA 2
Reel Material
Steel
Feeder Cord Ending
Grounding Plug, inline GFCI
Reel Mounting
Bench, Ceiling, Wall
Feeder Cord Ending NEMA Configuration
5-20P
Shipping Weight
38.1 lb.
Feeder Cord Length
6 ft.
Slip Ring Rating
30A @ 600 V
Grade
Heavy Duty
Type
Heavy Duty with Cord
Height
13-13/16 in.
Voltage
120 VAC
Item
Extension Cord Reel
Watts
2500 W
Mfr. Part Number
RTBB3L-WGB520-J12K
Width
7-3/4 in.
NEC Cord Designation
SJOW
Wire Size
12 AWG
NEMA Connector
5-20R
General
Cord Length - Ext. Cords and Outlet Strips
50 ft.
Retractable Cord Ending
Duplex Box Receptacle
Feeder Cord Ending Configuration
NEMA 5-20P
Retractable Cord Ending Configuration
NEMA 5-20R
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Retractable Cord Length
50 ft
Grade - Ext. Cords and Outlet Strips
Heavy Industrial
Standards
CSA, NE mA 2, UL
Includes
Constant-Tension, Positive Lock Ratchet
Temp. Range
-22° to 194°F
Includes Cord
Yes
Temp. Rating
-22° to 194°F
Indoor / Outdoor
Indoor
Tension Method
Field Convertible
Location
Indoor
Trade Designation
SJOW
Max. Amps - Ext. Cords and Outlet Strips
20.0
Voltage - Ext. Cords and Outlet Strips
120VAC
NEC Cord Designation - Ext. Cords and Outlet Strips
SJOW
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
