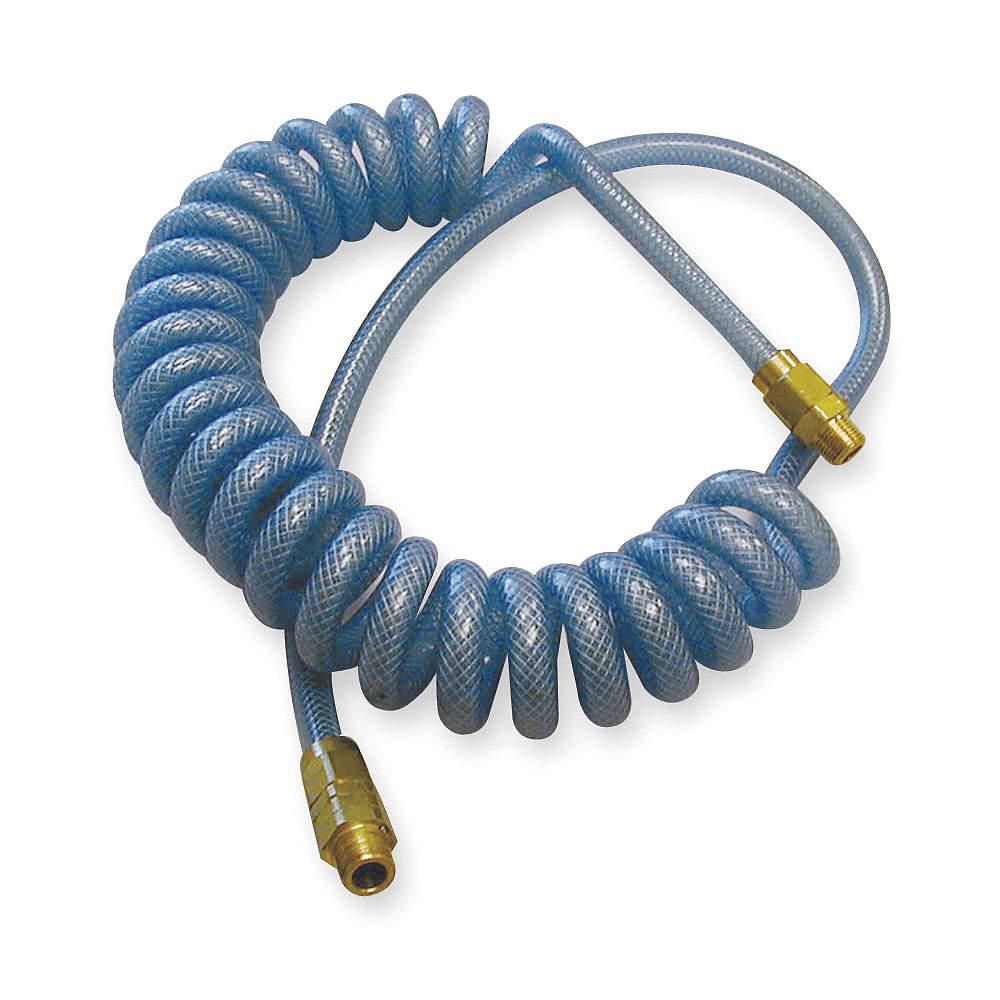

Coiled Air Hose: 3/8 in Hose Inside Dia., Blue, Brass x Brass, 3/8 in x 3/8 in Fitting Size

Hover over image to magnify
Coiled Air Hose,3/8" Id x 20
Coiled Air Hose,3/8" Id x 20
Double tap image to magnify
Coiled Air Hose,3/8" Id x 20
Coiled Air Hose,3/8" Id x 20

#936694Pkg Qty: 1

$127.77 pkg | $127.77 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Bend Radius
1-5/8 in.
Inside Diameter
3/8 in.
Brand
ATP
Item
Coiled Air Hose
Color Family
Blue
Maximum Pressure
210 psi
Coupled Assembly/Bulk
Coupled Assembly
Mfr. Part Number
PBS38-25CB2
Cover Material
Polyurethane
Outside Diameter
9/16 in.
Fitting Material
Brass
Package Quantity
1
Fitting Size
3/8 in. x 3/8 in.
Shipping Weight
2.1 lb.
Fitting Type
MNPT x MNPT
Subgroup | Pneumatic Hose
Coiled Air Hose Assembly
Hose Length
20 ft.
Tube Material
Polyurethane
Hose Media
Air, Fresh Water
General
Compatible Chemicals
Air, Fresh Water
Hose Fitting B Type
MNPT
For Media Type
Air, Water
Hose Fittings
Brass 3/8 in MNPT x Brass 3/8 in MNPT
Hose Configuration
Coupled Assembly
Hose Outside Dia.
9/16 in
Hose Cover Material
Polyurethane
Hose Tube Material
Polyurethane
Hose Fitting A Material
Brass
Max. Working Pressure @ 70 F
210 psi
Hose Fitting A Type
MNPT
Turns
35
Hose Fitting B Material
Brass
Working Range (Deg. F)
40 To 120

Product Description

These coiled air hose assemblies have a polyurethane tube and a polyurethane cover that resist becoming brittle with age and maintain excellent flexibility when exposed to low temperatures and cold weather. These hoses are more flexible and have better recoil memory than coiled air hose assemblies with a nylon tube and nylon cover. They are also lightweight, which minimizes the effort it takes to lift and move the hoses. The hoses have bend restrictors on their ends that help prevent kinking. These coiled air hose assemblies are used to carry compressed air to pneumatic tools and equipment in industrial environments.

Coiled air hose assemblies are lengths of hose that are shaped like a spring. The coils of the hose retract when it is not in use to keep the hose out of the way, save space, and prevent it from dragging on the ground. Coiled hose assemblies are used in applications where the hose will be connected to overhead equipment. Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to the tools and equipment.
