PS DOORS
Ps Doors Single Opening Loading Dock Safety Gate, 43.32" Gate Height, 11 to 13 ft. Opening Width, Manual
Hover over image to magnify
#936406-5 | Pkg Qty: 1
$1,456.54 pkg | $1,456.54 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PS DOORS
Mounting Location
Floor Mount
Color Family
Yellow
Operation
Manual
Item
Single Opening Loading Dock Safety Gate
Package Quantity
1
Mfr. Part Number
ESG-144-PCY
Shipping Weight
130 lb.
Mounting Location
Floor Mount
General
Adjustable Gate
Yes
In Use Height
3 1/2 ft
Adjustable Opening
120 in to 144 in
Includes
(2) Lift Assist/Slam-Proof Dampers, Gate Hinge Post, Gate Receiving Post, Top and Mid-Rails
Adjustable Width Increment
24 in
Includes Safety Guard
Yes
Anchor Bolt Diameter
3/8 in
Open Height
188 1/2 in
Anchor Bolt Length
3 in
Post Finish
Powder Coated
Anchor Bolt Type
Concrete
Safety Controls
Hold
Gate Finish
Powder Coated
Safety Guard Finish
Powder Coated
Gate Height
43 8/25 in
Safety Guard Material
Steel
Gate Material
Steel
Standards
OSHA 1910.28; 1910.29
Gate Swings
Right/Left
Swing Degree
90 °
Gate Width
132 in
Swing Direction
Right
Product Description

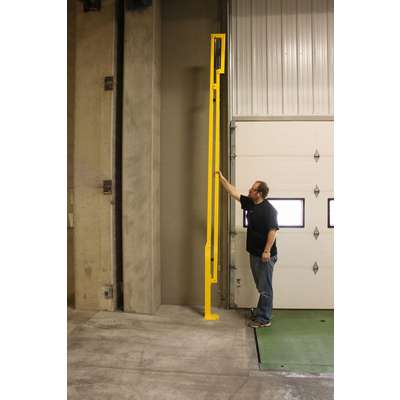

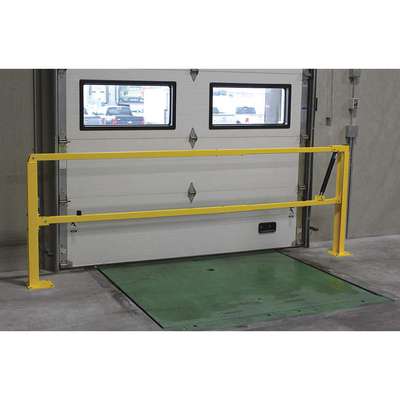

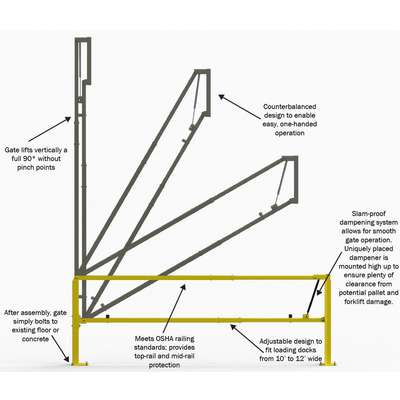

The OSHA-Compliant PS DOORS Loading Dock Safety Gate reduces the danger of falls from docks, bays, or exposed edges when closed. Gate lifts vertically 90° and is equipped with a slam-proof dampening system.
Item Barcode
Gate,120" To 144" Adj. Opening
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 422L36 | |
 | UNSPSC CODES | 24101809 | |
 | VMRS (ATA) CODES | 053-006-009 | Gate,120" to 144" Adj. |
