HUBBELL WIRING DEVICE-KELLEMS

Hubbell Wiring Device-Kellems 60 Amp, 1-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Yellow

Hover over image to magnify

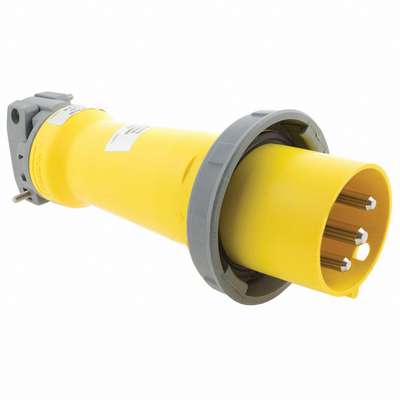

Iec Pin And Sleeve Plug,2P,3W,
PI_Asset_1982252
Iec Pin And Sleeve Plug,2P,3W,
PI_Asset_1982252

#936339-6 | Pkg Qty: 1

$586.01 pkg | $586.01 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
60 A
Mfr. Part Number
HBL360P4W
Amps
60 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 801 Nylon
Minimum Wire Size
8 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Enclosure Rating
4X
Cap Type
No Cap or Cover
Number of Poles
2
Color Family
Yellow
Number of Wires
3
Connection Orientation
Straight
Overall Length
10.14 in.
Current Rating
60 A
Package Quantity
1
Face Diameter
2.72 in.
Phase
Single
Features
Gasketed Sealing Ring Provides Watertight Seal
Pin & Sleeve Standards
CSA Certifications, IEC 60309, UL Listed
For Maximum Cable Diameter
1.45 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.5 in.
Reverse Service
No
Grounding
Grounded
Shipping Weight
2.25 lb.
Grounding Style
IEC
Shrouded
Yes
Horsepower
2 hp
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Housing Color
Yellow
Switch Rated
No
Housing Material
Polybutylene Terephthalate
Type
Plug
IP Rating
IP67
UL 94 Flammability Rating
HB
Item
Watertight Pin and Sleeve Plug
Voltage
125VAC
Material of Construction
Nonmetallic, Zytel 101 Nylon, Watertight And Abuse Resistant
Voltage Rating
125V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
2 AWG
General
Amps - Plugs and Receptacles
60
Phase - Electrical
1
Features
Watertight and Abuse Resistant
Voltage - Plugs and Receptacles
125V AC

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
