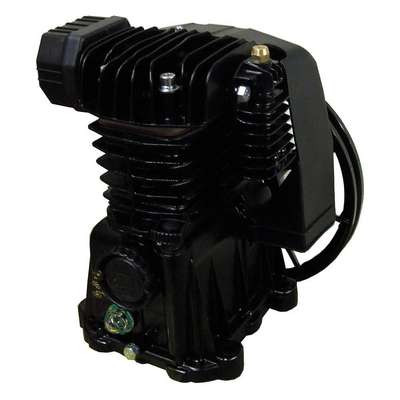

Air Compressor Pump: Splash Lubricated, 1 Stage, 3 hp, 6.5/8.1 cfm @ 145 psi, PMP12MK103GR
Hover over image to magnify
#936333-2 | Pkg Qty: 1
$427.66 pkg | $427.66 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ROLAIR
Oil Capacity
17 oz.
Construction
Cast Iron/Aluminum
Overall Height
11-1/2 in.
Finish
Painted Black
Package Quantity
1
Groove Quantity
1
Pump RPM
900 1400
Item
Air Compressor Pump
Rotation
CCW
Lubrication Type
Splash Lubricated
Sheave Size @ 1725 RPM
5-47/64 in., 8-15/16 in.
Mfr. Part Number
PMP12MK103GR
Shipping Weight
22.45 lb.
Number of Cylinders
2
Stroke Length
1-37/64 in.
Number of Stages
1
Valve Type
Reed
General
Avg. Pump Life
10,000 hr
Lubrication Required
Yes
Bore Dia.
2 9/16 in
Maximum Output Power
3 hp
Flywheel Dia.
10 1/8 in
Mounting Pattern
6-1/4 in W x 4-3/4 in D
Flywheel Included
Yes
Number of Grooves
1
Free Air CFM @ Max. Pressure
6.5, 8.1
Outlet Connection Type
NPT
Free Air Flow Rate @ Maximum Pressure
6.5/8.1 cfm @ 145 psi
Pump Speed
1,400 RPM
HP
1 1/2 hp, 3 hp
Sheave Size @ 3450 rpm
2 7/8 in
Product Description
This air compressor pump features stainless steel reed valves, splash lubrication, and a CCW rotation facing flywheel. Average pump life is 10,000 hours.
