DAYTON

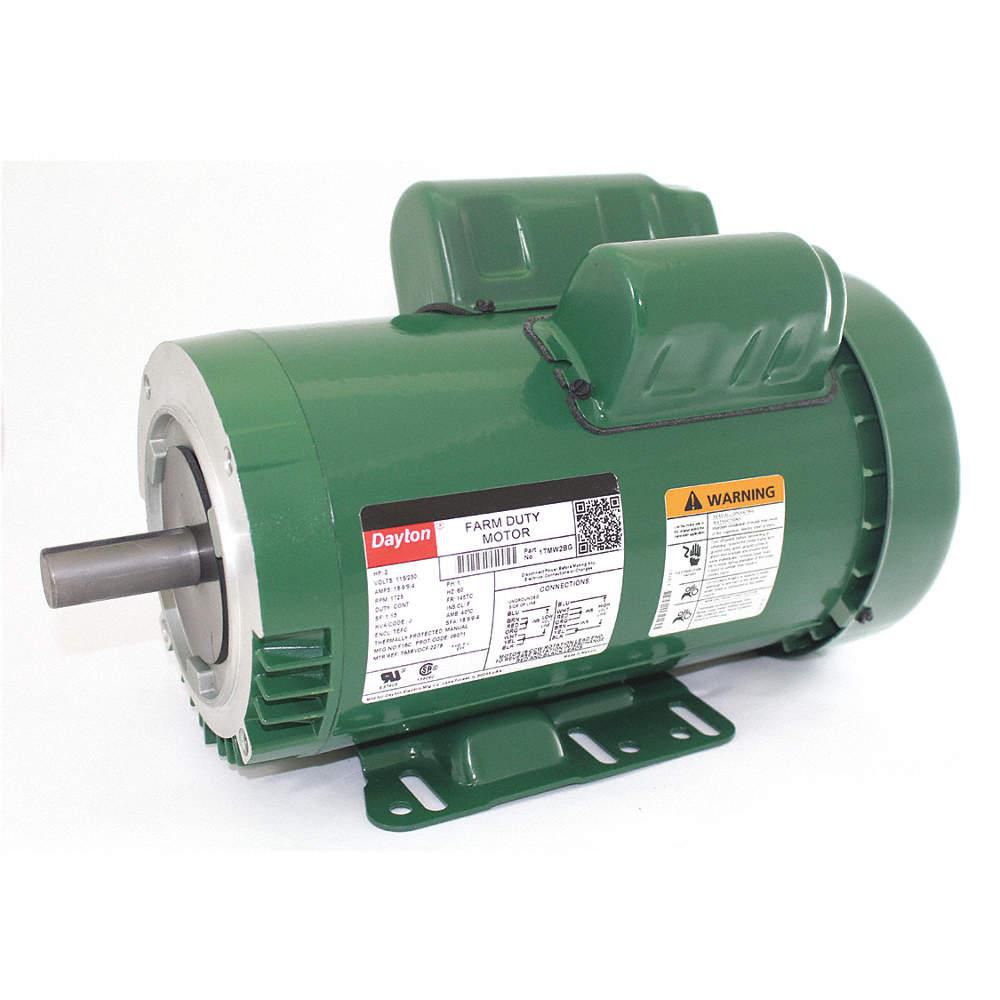

Dayton High Torque Farm Duty Motor, 2 HP, Capacitor-Start/Run, Nameplate RPM 1,725, Voltage 115/230V AC
Hover over image to magnify
#936325-2 | Pkg Qty: 1
$845.83 pkg | $845.83 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Recognized (E47479), CSA Certified (LR44256)
Mounting
Face/Base
Bearings
Ball
Mounting Position
Horizontal
Brand
DAYTON
NEMA/IEC Frame
145TC
Duty
Continuous
Nameplate RPM
1725
Duty Cycle
Continuous
Overall Length
14-7/16 in.
Enclosure
Totally Enclosed Fan-Cooled
Package Quantity
1
Finish
Enamel
Phase
Single
Frame
145TC
Replacement For
4VZ02
Full Load Amps
18.9/9.4
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
F
Shaft Length
2-1/8 in.
Item
High Torque Farm Duty Motor
Shaft Orientation
Horizontal
Length Less Shaft
12-5/16 in.
Shipping Weight
32 lb.
Mfr. Part Number
1TMW2BG
Thermal Protection
Manual
Motor Design
Capacitor-Start/Run
Voltage
115/230 VAC
Motor Type
Capacitor-Start
General
Capacitor Required
Included
Motor Mounting Type
Face/Base
Conduit Box
Gasketed
Motor Service Factor
1.15
Fan Blade Material
Plastic
Motor Shaft Design
Keyed
HP
2
Motor Shaft Rotation
CW/CCW
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base
Motor Sub Application
High Torque
Ins. Class
F
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
81.5 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Shaft Dia.
7/8 in
Motor Frame Material
Rolled Steel
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
High torque farm-duty AC motors can power conveyors, silo unloaders, barn cleaners, compressors, and manure pumps under heavy load conditions. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Documents
Item Barcode
Farm Duty Mtr,Cap S/R,Tefc,2HP,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1TMW2 | |
 | UNSPSC CODES | 26101311 | |
 | VMRS (ATA) CODES | 053-006-009 | Farm Duty Mtr,Cap S/R, |
