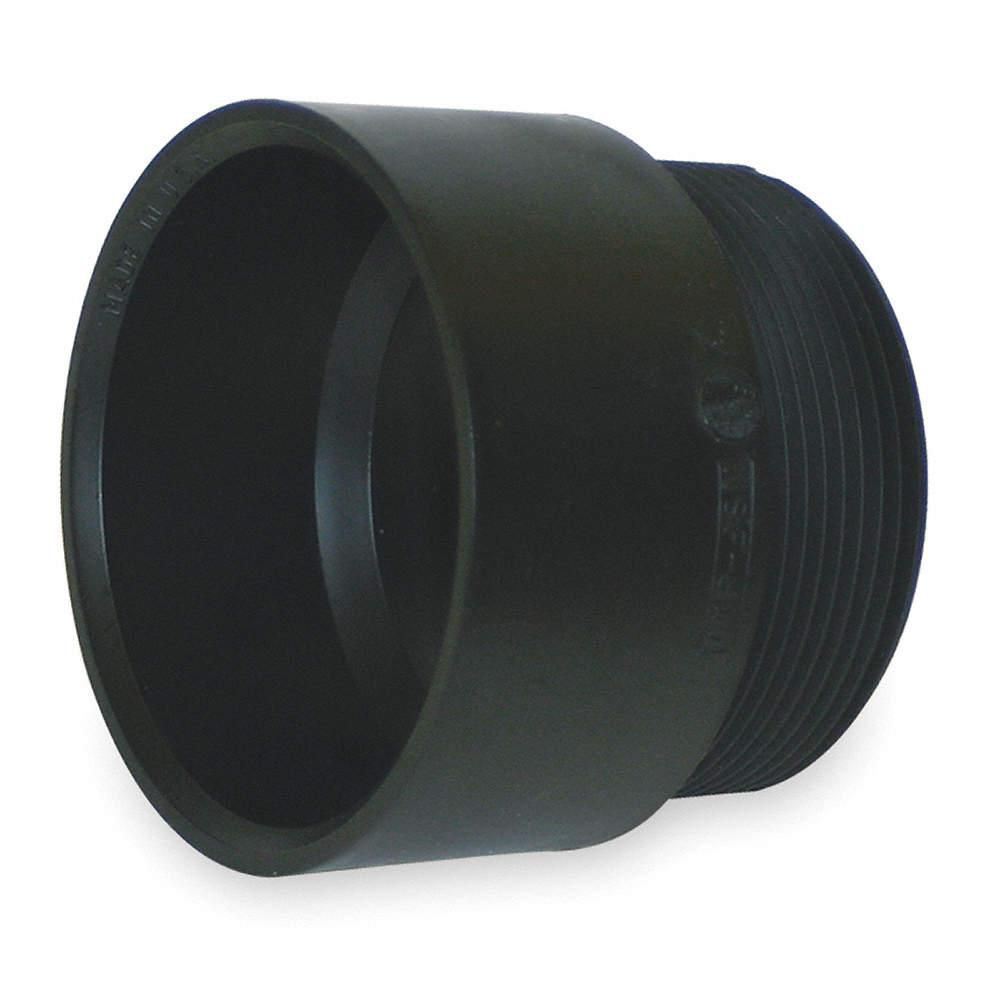

Male Adapter: 4" x 4" Pipe Size, Schedule 40, Male NPT x Female Socket, Black

Hover over image to magnify
Adapter,4 In Hub x Mnpt
PI_Asset_1769249
Adapter,4 In Hub x Mnpt
PI_Asset_1769249

#936176-5 | Pkg Qty: 1

$18.96 pkg | $18.96 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
DWV
Fitting Connection Type
Hub x MNPT
Basic Fitting Material
Plastic
Fitting Pipe Size
4 in. x 4 in.
Basic Fitting Shape
Adapter
Fitting Shape
Adapter
Brand
APPROVED SUPPLIER
For Pipe Outside Diameter
4-1/2 in.
Color Family
Black
For Pipe Schedule
40
Connection Type
Socket, Threaded
Includes Plug
No
Fitting Connection (A) Gender
Male
Includes Seal
No
Fitting Connection (A) Outside Diameter
4-1/2 in.
Item
Adapter
Fitting Connection (A) Pipe Size
4 in.
Mfr. Part Number
1WJD5
Fitting Connection (A) Type
NPT
Package Quantity
1
Fitting Connection (B) Gender
Female
Pipe Fitting Material
ABS
Fitting Connection (B) Outside Diameter
5 in.
Shipping Weight
.5 lb.
Fitting Connection (B) Pipe Size
4 in.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection (B) Type
Socket
Temperature Range
-20 Degrees to 140 Degrees F
General
Fitting Side A Gender
Male
Fitting Side B Type
Socket
Fitting Side A Nominal Pipe Size
4 in
Gender
Female, Male
Fitting Side A Outside Diameter
4 1/2 in
Low Lead Compliance Level
Not Compliant
Fitting Side A Pipe Threading
8
Pipe Fitting Connection Type
Male NPT x Female Socket
Fitting Side A Type
NPT
Pipe Fitting Gender
Male Female
Fitting Side B Gender
Female
Pipe Size - Pipe Fitting
4 in
Fitting Side B Nominal Pipe Size
4 in
Temp. Range
-20 Degrees to 140 Degrees F
Fitting Side B Outside Diameter
5 in

Product Description

Socket x threaded fittings connect with ABS (acrylonitrile butadiene styrene) pipe and have at least one threaded end and one socket (hub or slip) fitting end. Female threads are on the inside of a fitting. Male threads are on the outside of a fitting and screw into the female threads. Threaded connections use PTFE tape to secure seal.

ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. The smooth interior walls of ABS pipe resist physical impact, chemical corrosion, and scaling. ABS pipe connects with pipe fittings to transport potable water, slurries, and chemicals in light commercial applications.
