COXREELS

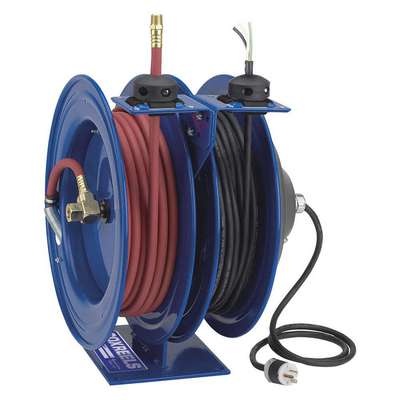

Dual Reel Spring Return Hose Reel, Air, Electric, 0 PSI, 300 PSI, Combination Type Air/Electric

Hover over image to magnify
Dual Hose Reel,Spring,3/8 In
Dual Hose Reel,Spring,3/8 In

#936169-9 | Pkg Qty: 1

$1,056.86 pkg | $1,056.86 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
COXREELS
Mounting Location
Bench, Floor, Truck, Wall
Cord Color
Black
Number of Conductors
2
Drive Type
Spring Return
Number of Guide Arms
Single Arm
Enclosed
No
Number of Outlets
2
Fitting Size
3/8 in. x 3/8 in.
Overall Dimensions
17 in. L x 16 in. W x 18-5/8 in. H
Fitting Type
Cord x Cord, NPT x NPT
Overall Height
18-5/8 in.
Hose Capacity
50 ft. (3/8 in ID)
Package Quantity
1
Hose Reel Group
Spring Return Hose Reels
Pedestal Type
Single Pedestal
Includes Hose
Yes
Reel Color
Blue
Item
Dual Reel Spring Return Hose Reel
Reel Diameter
17 in.
Latch Type
Locking
Reel Material
Steel
Maximum Operating Temperature
150 deg. F
Reel Width
16 in.
Maximum Pressure
300 psi
Seal Material
Nitrile
Mfr. Part Number
C-L350-5012-X
Shipping Weight
82 lb.
Minimum Operating Temperature
-15 deg. F
Speed Limited Retraction
No
Mounting Location
Bench, Floor, Truck, Wall
Voltage
115 VAC
General
Base Motion Type
Stationary
Hose Reel Type
Wall Mount Hose Reel
Bearing Construction
Permanently Lubricated
Include Hose Stop
Yes
Combination Type
Air/Electric
Includes
Cord, Hose
Cord Current
20 A
Includes Cord
Yes
Cord Gauge
12 AWG
Minimum Operating Pressure
0 psi
Features
1 in. Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates independently, Heavy Gauge 1/4 in. Steel Base and Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
Mount Base Height
9 in
Feeder Cord Ending
Grounding Plug
Mount Base Width
8 in
Feeder Cord Ending Configuration
NEMA 5-20P
Mount Hole Diameter
1/2 in
Feeder Cord Length
5 ft
Mounting Hole Center to Center Height
8 in
Fitting Gender
Male x Male
Mounting Hole Center to Center Width
7 in
Hose 1 Cover Material
PVC
Number of Mount Holes
4
Hose 1 Fitting A Gender
Male
Plug Type
NEMA 5-20P
Hose 1 Fitting A Material
Brass
Reel Finish
Powder Coated
Hose 1 Fitting A Size
3/8 in
Retractable Cord Ending
Single Plug
Hose 1 Fitting A Type
NPT
Retractable Cord Ending Configuration
NEMA 5-20P
Hose 1 Fitting B Gender
Male
Retractable Cord Length
50 ft
Hose 1 Fitting B Material
Brass
Standards
CE
Hose 1 Fitting B Size
3/8 in
Swivel Inlet Gender
Female
Hose 1 Fitting B Type
NPT
Swivel Inlet Size
3/8 in
Hose 1 Inside Diameter
3/8 in
Swivel Inlet Thread Size
3/8 in - 18
Hose 1 Length
50 ft
Swivel Inlet Type
NPT
Hose 1 Outside Diameter
5/8 in
Swivel Material
Brass
Hose 1 Tube Material
PVC
Swivel Outlet Gender
Female
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
Swivel Outlet Size
3/8 in
Hose Inside Dia.
3/8 in
Swivel Outlet Thread Size
3/8 in - 18
Hose Reel Primary Application
Air, Electric
Swivel Outlet Type
NPT
Hose Reel Product Group
Combination Air/Electric Reel

Product Description

Air and electric combination spring-return hose reels combine two reels in one compact assembly for applications requiring pneumatic air and an electrical power feed. The two reels operate independently, but are mounted together on a single expanded, steel base for extra stability. These low-pressure (up to 500 psi), combination reels mount indoors to the floor, wall, ceiling, or a bench, and require only one mounting pattern to save installation time. The guide arm adjusts to the wall, floor, and overhead positions. The spring-return, also called self-retracting, spring-driven, or spring rewind, allows users to manually rewind hose onto the reel without an external power source. The spring-return has a locking ratchet and pawl that locks into place once users have pulled the hose to the desired length. The ratchet is released by pulling the hose out, and then hose can be rewound onto the reel. Air and electric dual-purpose reels hold air and electric hoses/cables and are used with pneumatic and power tools, with air services, and as a light source.
