Radial Ball Bearing: 0.1875" Bore Dia., 0.5" Outside Dia., 0.196" Width, Double Shielded

Hover over image to magnify

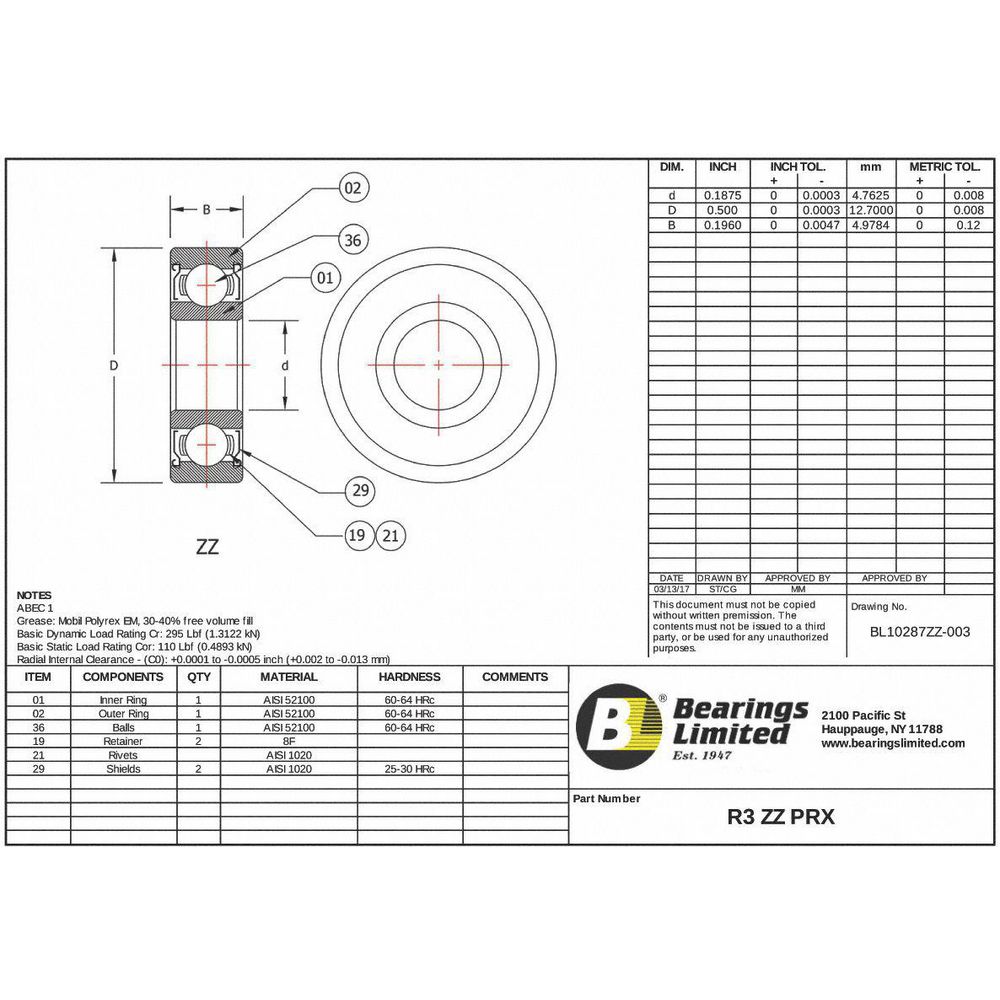

Min Ball Bearing,Ps,0.1875In
PI_Asset_1762540
Min Ball Bearing,Ps,0.1875In
PI_Asset_1762540

#936159-9 | Pkg Qty: 1

$3.46 pkg | $3.46 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ABEC Tolerance
1
Mfr. Part Number
R3 ZZ PRX
Bearing Material
Steel
Outside Diameter
1/2 in.
Bore Diameter
3/16 in.
Outside Diameter Tolerance
+0/-0.0003 in
Bore Tolerance
+0/-0.0003 in
Package Quantity
1
Brand
TRITAN
Radial Ball Bearing Seal/Shield Type
Double Shielded
Cage Material
Pressed Steel
Shield Material
Steel
Dynamic Load Capacity
295 lb.
Shipping Weight
.01 lb.
Industry Number
R3ZZ
Single Row/Double Row
Single Row
Item
Radial Ball Bearing
Static Load Capacity
110 lb.
Lubrication
Polyrex EM Grease
Temperature Range
-40 deg. F to 350 deg. F
Maximum RPM
41000 RPM
Width
0.196 in.
General
Ball Material
Alloy Steel
Miniature Bearing
Yes
Ball Material Grade
AISI 52100
Minimum Temperature
-40 Degrees F
Bearing Industry Number
R3
Number of Rows
One
Dynamic Radial Load Capacity
295 lbf
Outer Ring Width
0.196 in
Flange Type
Non-Flanged
Ring Material
Alloy Steel
For Environment
Oily/Greasy
Ring Material Grade
AISI 52100
Lubricant Material
Polyrex EM
Standards
AFBMA, ISO Certified 9001
Maximum Axial Load
295 lbf
Static Radial Load Capacity
110 lbf
Maximum Speed
48,000 RPM
System of Measurement
Inch
Maximum Temperature
350 Degrees F

Product Description

This radial ball bearing features single-row alignment.
