SNAP-TITE

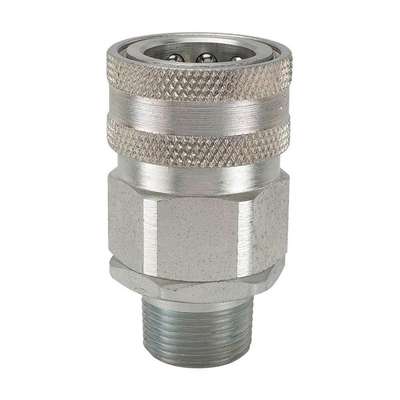

Hydraulic Quick Connect Hose Coupling: 1/4 in Coupling Size, Steel, 1/4"-18 Thread Size
Hover over image to magnify
#936121-9 | Pkg Qty: 1
$34.40 pkg | $34.40 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Steel
Pack Quantity
1
Brand
SNAP-TITE
Seal Material
Nitrile
Connection Type
NPT
Shipping Weight
.22 lb.
Fitting Type
MNPT
Sleeve Material
Steel
Item
Hydraulic Quick Connect Hose Coupling
Thread Size
1/4"-18
Mfr. Part Number
VHC4-4M
Valve Type
Poppet
General
Bearing Material
440 Stainless Steel
Includes Valve
Yes
Coupling Component
Socket
Max. Flow Rate
14.384 lpm
Coupling Locking Type
Sleeve
Max. Outside Dia.
1 1/64 in
Finish/Coating
Zinc Plated
Max. Working Pressure @ 70 F
6,500 psi
Hose Fitting Gender
Male
Overall Length
2 3/32 in
Includes
Sleeve Lock
Parker Interchange
VHC4-4M
Includes Bearing
Yes
Series
H
Includes Shut Off
Yes
Product Description
H Series hydraulic quick-connect coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) including IH and PH Series couplings.
