JET

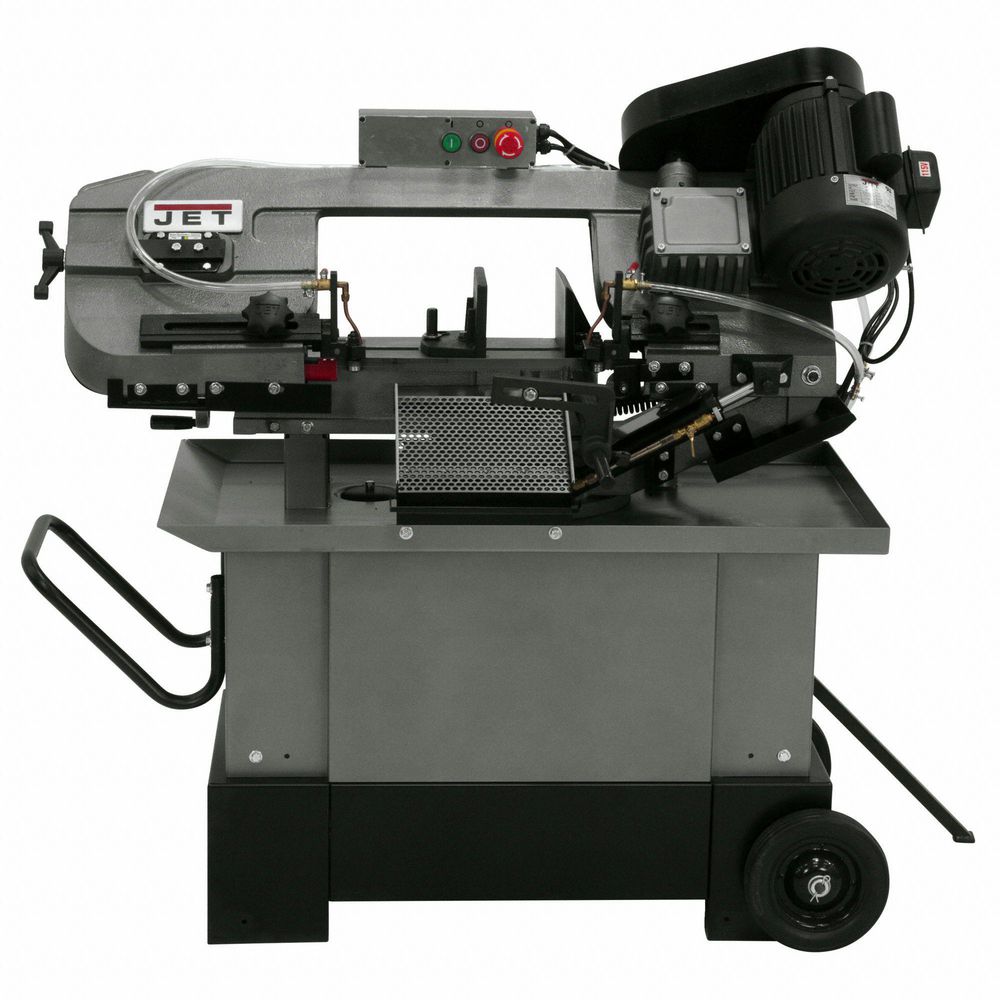

JET 413451 Horizontal/Vertical Combo, Stationary Band Saw; 93 in. Blade Length, 4 Speeds

Hover over image to magnify
Band Saw,Combination,86 To 260
PI_Asset_1758159
PI_Asset_1761136
PI_Asset_1772154
PI_Asset_1773786
PI_Asset_1774777
PI_Asset_1774778
PI_Asset_1774779
PI_Asset_1774780
PI_Asset_1774781
PI_Asset_1774782
Band Saw,Combination,86 To 260
PI_Asset_1758159
PI_Asset_1761136
PI_Asset_1772154
PI_Asset_1773786
PI_Asset_1774777
PI_Asset_1774778
PI_Asset_1774779
PI_Asset_1774780
PI_Asset_1774781
PI_Asset_1774782

#936043-4 | Pkg Qty: 1

$2,885.93 pkg | $2,885.93 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Blade Length
93 in.
Operation
Semi-Automatic
Blade Thickness
0.032 in.
Orientation
Horizontal/Vertical Combo
Brand
JET
Overall Depth
50 in.
Current Rating
14.0/7.0 A
Overall Height
48 in.
Horsepower
1 HP
Overall Width
31-1/2 in.
Hz
60 Hz
Package Quantity
1
Item
Stationary Band Saw
Phase
1
Material Application
Metal
Shipping Weight
450 lb.
Mfr. Part Number
413451
Voltage
115/230V AC
Number of Speed Settings
4
General
Blade Wheels Dia.
11-3/4 in.
Rectangular Cutting Capacity - Horizontal
7 in. x 10-1/2 in.
Cutting Capacity Square
7 in.
Round Cutting Capacity - Horizontal
7 in.
Includes
Quick Lock Vise; 3/4 in. Bi-Metal Blade 5/8 TPI; Coolant System; Adjustable Material Stop; Chip Brush
SFPM Range
86 to 260
Max. Blade Width
3/4 in.
Throat Depth - Vertical
10-1/2 in.
Miter Angle Range
45 Degrees, 90 Degrees

Product Description

Semi-automatic combination vertical and horizontal band saws are manually operated in the vertical position and semi-automatic in the horizontal position. Manually operated band saws have a table that supports the workpiece while the operator pushes it through the blade. Semi-automatic horizontal band saws have a table the operator manually clamps the workpiece to. The saw is programmed to lower the cutting head to complete the cut. Semi-automatic saws lower operator fatigue on medium and large production runs when repeated cuts are made.

Expertly Selected Product Pairings

Band Saw Blade,Bimetal,3/4 In.
$32.75 pkg | $32.75 ea
Item: 916063-9 | Pkg Qty: 1
Band Saw Blade,7 Ft. 9 In. L
$26.20 pkg | $26.20 ea
Item: 929045-1 | Pkg Qty: 1
