ELMO RIETSCHLE

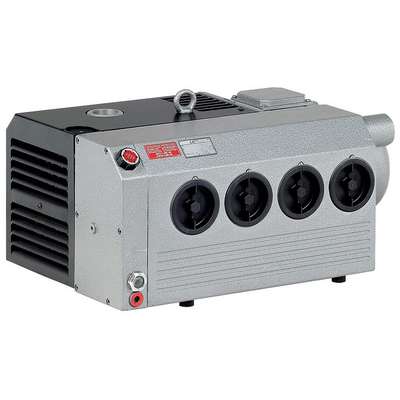

Vacuum Pump: 2 hp, 3 Phase, 200V AC, 902.9 cfm Free Air Displacement
Hover over image to magnify
#936002-1 | Pkg Qty: 1
$6,846.46 pkg | $6,846.46 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
6.7
Motor Type
TEFC
Brand
ELMO RIETSCHLE
Oil Capacity
96 oz.
Displacement
35.0 CFM
Overall Height
10-1/2 in.
Filter
Internal
Package Quantity
1
Finish
Painted
Phase
3
Hz
60
RPM
1800 RPM
Item
Vacuum Pump
Shipping Weight
185 lb.
Mfr. Part Number
VC-50
Voltage
200
General
Application
Air and inert Gas
Max Operating Pressure
29.91 in Hg
Compressor Oil Capacity
96 oz
Maximum Discharge Pressure
0.1 mbar
Fluid Compatibility
Oil
Outlet Hose/Tube OD
1 1/4 in
Free Air Displacement
35.3 cfm
Output Power
2 hp
HP
2 hp
Reservoir
Internal
Height with Filter
10-1/2"
Ultimate Pressure Torr
0.375
Includes
Filter, Oil, Vacuum Non-Return Valve
Product Description
Lubricated Rotary Vane Vacuum Pumps
- TEFC motors for continuous duty Oil sight glass Single-stage, oil-flooded units are direct driven. Oil-free discharge through large droplet separation followed by oil mist filters. Gas ballast. Also include fine mesh filter, vacuum nonreturn valve, and initial fill of oil.
Expertly Selected Product Pairings
Item Barcode
Vacuum Pump,2 Hp,29.9 In. Hg,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 36Z455 | |
 | UNSPSC CODES | 40151502 | |
 | VMRS (ATA) CODES | 053-006-009 | Vacuum Pump, 2 HP,29.9 In. |
