GOULDS WATER TECHNOLOGY

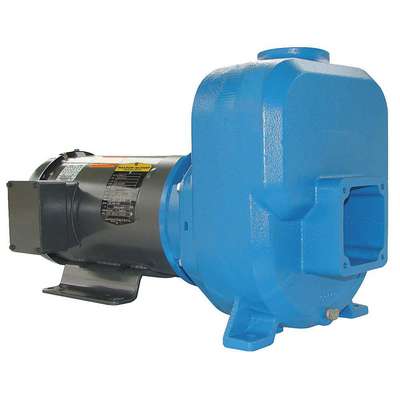

5-HP Self Priming Centrifugal Pump, 165 ft Max. Head, 1/8" Max. Dia. Solids, Cast Iron

Hover over image to magnify
Self Priming Pump,5 Hp,Cast
Self Priming Pump,5 Hp,Cast

#935999-6 | Pkg Qty: 1

$3,693.94 pkg | $3,693.94 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps
12/6
Length
23 in.
Best Efficiency Range GPM @ Head
100 to 140 GPM @ 138 to 104 ft.
Mfr. Part Number
50SPH70
Brand
GOULDS WATER TECHNOLOGY
Outlet
2 in. NPT
Hz
60
Pack Quantity
1
Impeller Material
Bronze
Seal Material
Carbon/Ceramic
Inlet
2-1/2 in. NPT
Shipping Weight
135 lb.
Item
Centrifugal Pump
Wetted Materials
300 Stainless Steel, 316 Stainless Steel, Buna-N, Carbon, Cast Iron, Ceramic, Silicon Bronze
General
Best Efficiency Head
104 to 138 ft
Intake and Discharge Size
2 1/2 in , 2 in
Compatible Discharge Pipe Size
2 in
Maximum Feet of Head
138.6 ft
Compatible Intake Pipe Size
2 1/2 in
Motor Enclosure Type
ODP
Compatible with Media Type
Water
Nameplate Voltage
208-230/460V AC
Discharge Type
NPT
Nominal Voltage
208-230/460V AC
Feet of Head (Minimum)
46.2 ft
Priming
Self-Priming
Flow Rate @ 10 ft of Head (Maximum)
176 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 20 ft of Head (Maximum)
134 gpm
Pumping Application
Dewatering, Lawn Irrigation, Liquid Transfer, Live Stock Watering, Plot Irrigation
Flow Rate @ 5 ft of Head (Maximum)
182 gpm
Shut Off Pressure (Maximum)
60 psi
Impeller Design
Closed
Solid Diameter (Maximum)
0.13 in
Intake Type
NPT
Wetted Material
316 Stainless Steel, Bronze, Buna-N Carbon, Ceramic

Product Description

Featuring a replaceable silicon wear ring and shaft sleeve to help extend pump life, this GOULDS WATER TECHNOLOGY centrifugal pump has a pull-out back and tapped connections that ease maintenance. Model requires a check valve (sold separately) to retain liquid for fast, reliable priming and automatic repriming if suction is lost. Model also requires a balanced impeller keyed to the motor shaft. Pump is suitable for use in high-flow applications such as lawn irrigation, dewatering, liquid transfer, and plot irrigation.

Item Barcode
9359996
Self Priming Pump,5 Hp,Cast
 NameItemDescription
Grainger DropshipGrainger Dropship49UU57
UNSPSC CODESUNSPSC CODES40151510
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Self Priming Pump,5 HP,
