AIROTRONICS

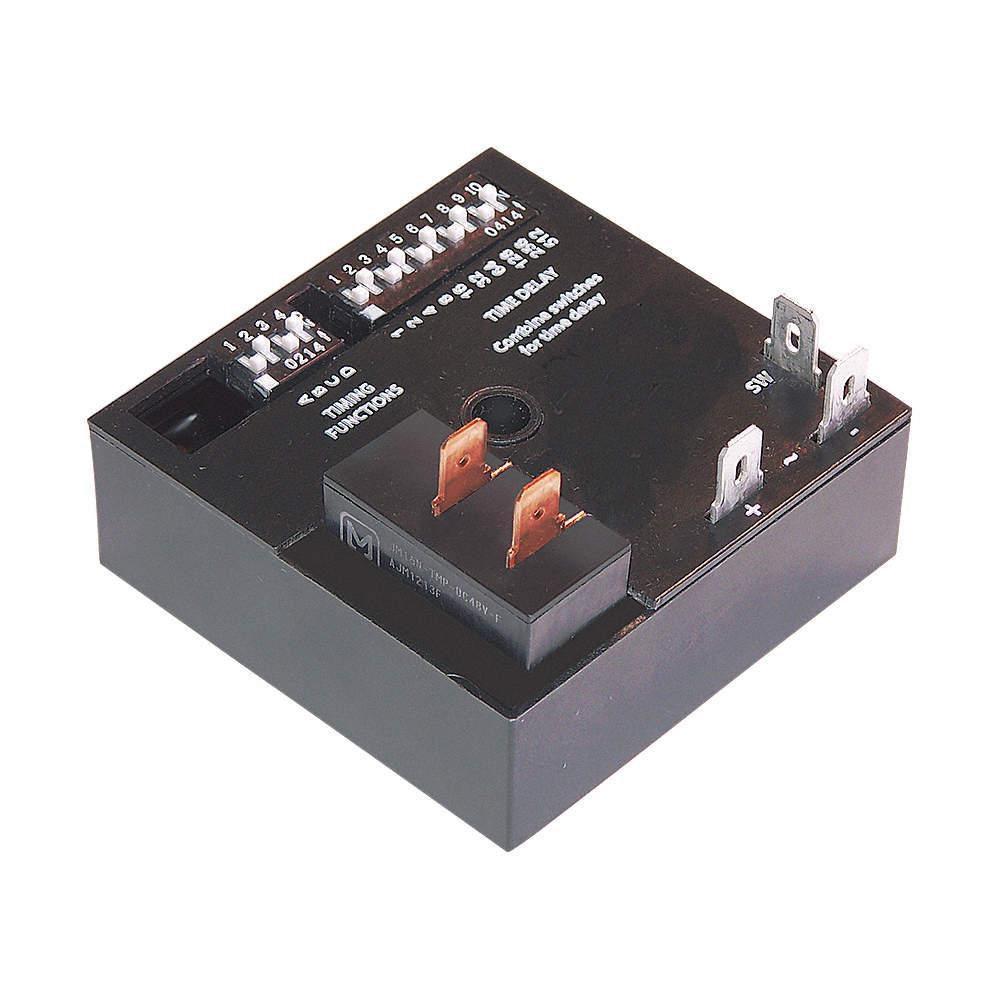

Airotronics Multi-Function Encapsulated Timing Relay, 12V DC, Mounting: Surface, SPST-NO

Hover over image to magnify
Encapsulated Timing Relay,
PI_Asset_1762100
Encapsulated Timing Relay,
PI_Asset_1762100

#935735-5 | Pkg Qty: 1

$61.08 pkg | $61.08 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adjustment Method
Dip Switch
Mfr. Part Number
MC7004531J
Brand
AIROTRONICS
Mounting
Surface
Coil Volts
12 VDC
Number of Functions
5
Contact Form
SPST
Operating Functions
5
Contact Material
Silver Tin Oxide
Output
Relay
Electrical Connection
Surface Mount
Package Quantity
1
Function
Delay On Make, Delay On Break, Single Shot, interval, Percentage
Pins
5
Hz
50/60
Shipping Weight
.25 lb.
Input Voltage
12 VDC
Status Indicator
LED
Input or Control Voltage
12 VDC
Type of Output
Relay
Item
Multi-Function Encapsulated Timing Relay
General
Adjustment Method - Timer
Dip Switch
Max. Time Setting - Timer
17 hr
Body Depth - Relay
2.5 in
Min. Time Setting - Timer
0.1 sec
Body Height - Relay
0.83 in
Mounting - Relay
Surface
Body Width - Relay
2.5 in
Number of Pins - Relay
5
Contact Form - Relay
SPST-NO
Overall Height - Relay
1.3 in
DC Contact Rating - Relay
25A @ 12V
Standards
UL508
Function - Timing Relay
Delay On Break, Delay On Make, Interval, One Shot, Percentage
Timer Range
0.1 sec. to 1023 min.
Hz - Electrical
50 Hz, 60 Hz

Product Description

Multi-Function Encapsulated Timing Relay, Function - Timing Relay Delay On Break, Delay On Make, Interval, One Shot, Percentage, Input or Control Voltage 12V DC, DC Contact Rating - Relay 25A @ 12V, Mounting - Relay Surface, Contact Form - Relay SPST-NO, Adjustment Method - Timer Dip Switch, Min. Time Setting - Timer 0.1 sec, Max. Time Setting - Timer 17 hr, Type of Output Relay

Item Barcode
9357355
Encapsulated Timing Relay,
 NameItemDescription
Grainger DropshipGrainger Dropship40AP79
UNSPSC CODESUNSPSC CODES39122329
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Encapsulated Timing Relay,
