ROLAIR

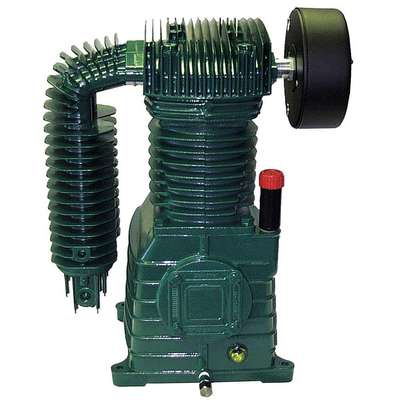

Air Compressor Pump: Splash Lubricated, 2 Stage, 7 1/2 hp, 19.1/24.0 cfm @ 175 psi
Hover over image to magnify
#935702-9 | Pkg Qty: 1
$1,095.79 pkg | $1,095.79 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ROLAIR
Oil Capacity
47 oz.
Construction
Cast Iron
Overall Height
20 in.
Finish
Painted Green
Package Quantity
1
Groove Quantity
2
Pump RPM
1000 1200
Item
Air Compressor Pump
Rotation
CCW
Lubrication Type
Splash Lubricated
Sheave Size @ 1725 RPM
7-51/64 in., 10-13/32 in.
Mfr. Part Number
PMP22K30GR
Shipping Weight
79 lb.
Number of Cylinders
2
Stroke Length
3-3/32 in.
Number of Stages
2
Valve Type
Reed
General
Avg. Pump Life
10,000 hr
Lubrication Required
Yes
Bore Dia.
2 3/64 in, 4 1/8 in
Maximum Output Power
7.5 hp
Flywheel Dia.
15 in
Mounting Pattern
8-15/16 in W x 7-7/16 in D
Flywheel Included
Yes
Number of Grooves
2
Free Air CFM @ Max. Pressure
19.1, 24.0
Outlet Connection Type
NPT
Free Air Flow Rate @ Maximum Pressure
19.1/24.0 cfm @ 175 psi
Pump Speed
1,200 RPM
HP
5 hp, 7 1/2 hp
Sheave Size @ 3450 rpm
3 3/16 in, 4 1/4 in
Product Description
Pump is tested in accordance with CAGI Acceptance Standard.
