BONOMI

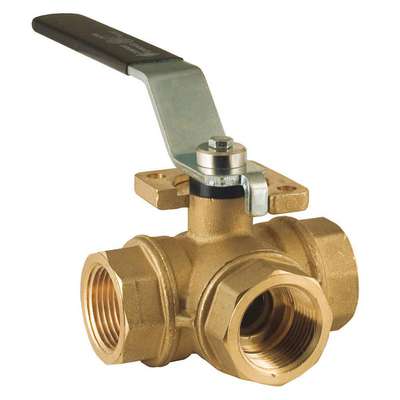

Ball Valve, Brass, 3-Way, 4-Piece, Pipe Size 1-1/4", Connection Type FNPT x FNPT
Hover over image to magnify
#935698-3 | Pkg Qty: 1
$202.42 pkg | $202.42 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Material
Brass
Item
Ball Valve
Ball Valve Item
Ball Valve
Mfr. Part Number
365N-11/4"
Body Material
Brass
Package Quantity
1
Body Style
3-Way
Pipe Size
1-1/4 in.
Brand
BONOMI
Port
Standard L
Connection Type
FNPT x FNPT
Seat Material
PTFE
Handle Material
Zinc Plated Steel with Vinyl Grip
Shipping Weight
4.5 lb.
Handle Type
Lever
Stem Material
Brass
General
Ball Valve Product Group
Manual
Temp. Range
-4 Degrees to 366 Degrees F
Features
Valve has 4 Ball Seats; therefore, any port can be the pressurized inlet
Valve Basic Body Material
Brass
Max. Steam Pressure
100 psi WSP
Valve Structure
4-Piece
Standards
ANSI B1.20.1
Product Description
This Bonomi® ball valve features double O-ring stem packing and O-ring backing for low operating torque. Valve has a 90° flow pattern with Off position. For a specific flow pattern, remove the handle and reorient the valve stem to the desired flow path (see markings on top of the ball valve stem), then reattach the handle.
Item Barcode
Ball Valve,3-Way,Standard L
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 46CE35 | |
 | UNSPSC CODES | 40141607 | |
 | VMRS (ATA) CODES | 053-006-009 | Ball Valve,3- Way,Standard |
