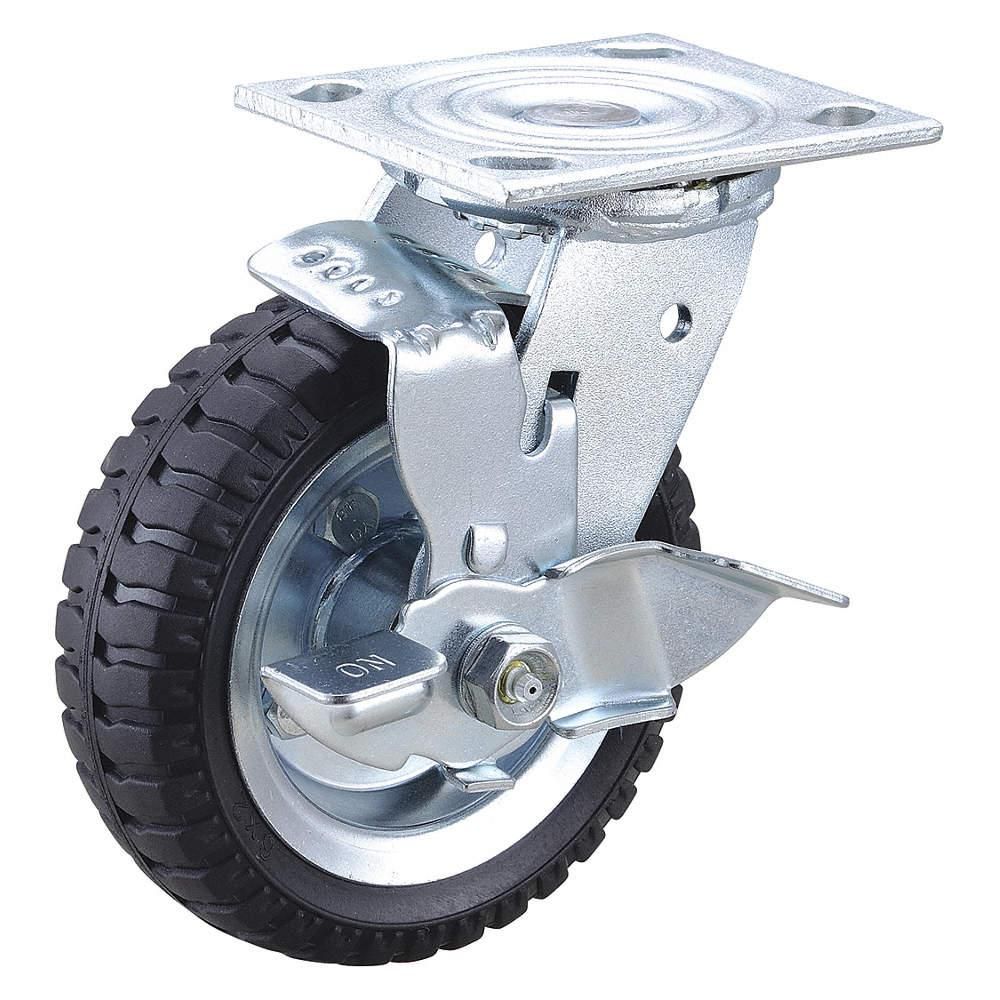

Light Duty, Swivel Plate Caster with Flat-Free Wheels; 250 lb. Load Rating, 6" Wheel Dia.

Hover over image to magnify
Flat-Free Plate Caster,Swivel,
PI_Asset_1495316
Flat-Free Plate Caster,Swivel,
PI_Asset_1495316

#935683-1 | Pkg Qty: 1

$21.35 pkg | $21.35 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Plate Caster with Flat-Free Wheels
Caster Brake Included
Yes
Load Rating
250 lb.
Caster Brake Type
Side Pedal Brake
Mfr. Part Number
437V24
Caster Load Rating Range
Light Duty
Mounting Bolt Diameter
3/8 in.
Caster Plate Hole Pattern
B
Mounting Height
7-1/4 in.
Caster Plate Size
4 in. x 4-1/2 in.
Non-Marking
No
Caster Raceway
Double Ball
Number of Mounting Holes
4
Caster Swivel Lock Type
No Lock Included
Number of Wheels
1
Caster Wheel Bearings
Precision Ball
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Core Color
Silver
Plate Caster Sub-Type
Swivel
Core Material
Steel
Shipping Weight
6.07 lb.
Durometer
75 Shore A
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Wheel Color
Black
Frame Material
Steel
Wheel Diameter
6 in.
Includes Thread Guards
No
Wheel Width
2 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel/Tread Hardness Rating
Soft
General
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4 1/2 in (B)
Caster Max. Temp.
155°F
Standards
ANSI, ICWM
Caster Min. Temp.
-40°F
Swivel Lock Type
No Lock Included
Caster Plate Thickness
7/32"
Swivel Raceway Type
Double Ball
Caster Product Group
Swivel Caster with Brake
Tread Shape
Standard
Caster Temp. Range Available
Yes
Wheel Bearing Type
Precision Ball
Load Rating Range
0 to 299 lb
Wheel Core Material
Steel
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Hardness
75 Shore A
Mounting Plate Size
4 in x 4 1/2 in
Wheel/Tread Material
Rubber

Product Description

These medium-duty plate casters have flat-free wheels that absorb shock and vibration for a cushioned ride and will not go flat if punctured. The casters' solid flat-free wheels are heavier than pneumatic or semipneumatic wheels, and they absorb more shock than semipneumatic wheels. Medium-duty plate casters with flat-free wheels are suitable for rolling over rough or uneven terrain in areas that may contain sharp debris such as nails, metal shavings, or rocks. They can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
