HUBBELL LIGHTING - OUTDOOR

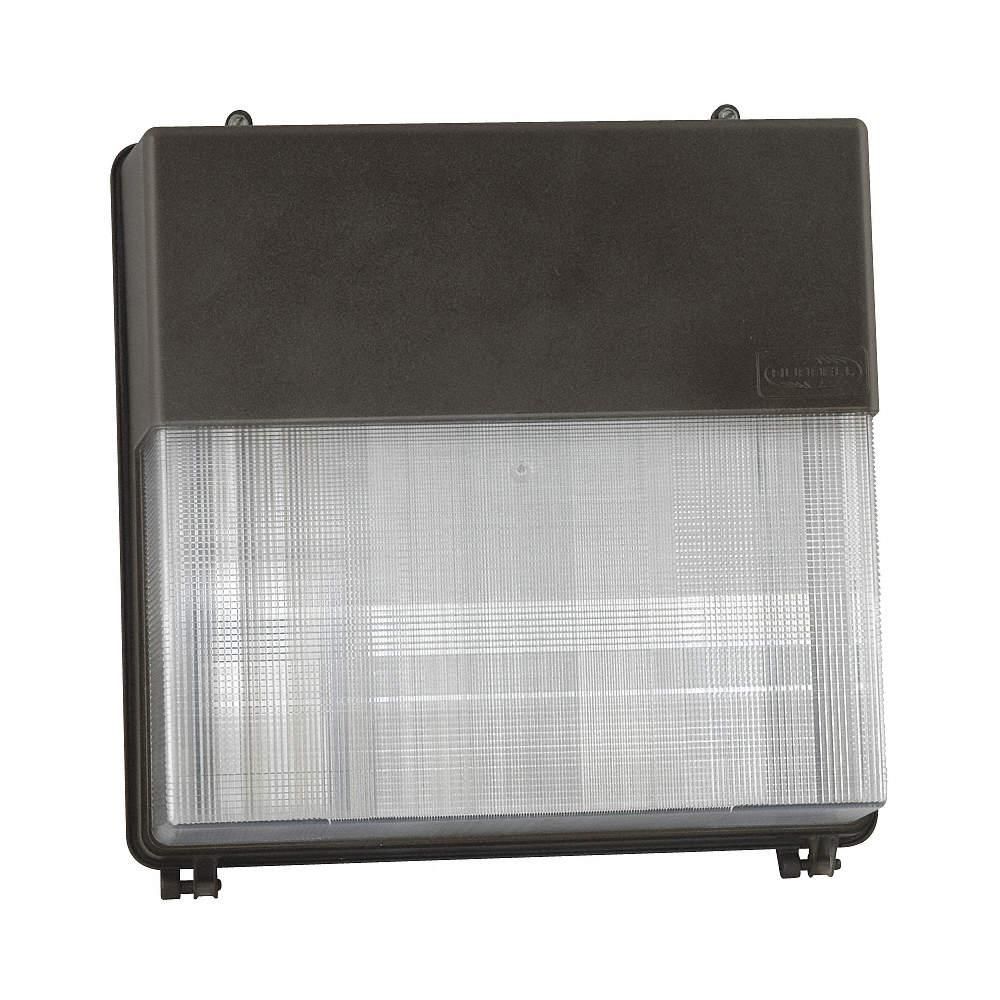

Hubbell Lighting Wall Pack, Type III Light Distribution Shape, 4,000 K Color Temperature, 6,615 lm

Hover over image to magnify
Wall Pack,LED,4000K,6615 Lm,
Wall Pack,LED,4000K,6615 Lm,

#935610 | Pkg Qty: 1

$629.92 pkg | $629.92 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HUBBELL LIGHTING - OUTDOOR
Light Technology
LED
Color Rendering Index
80
Lumens
6615 lm
Color Temperature
4000 K
Mfr. Part Number
PVL3-180L-4K-5-DB
Height
8 in.
Package Quantity
1
Housing Color
Bronze
Sensor Type
No Sensor Included
Housing Finish
Dark Bronze
Shipping Weight
16.9 lb.
Housing Material
Aluminum
Voltage
480 VAC
Item
Wall Pack
Watts
72 W
Length
15 in.
Width
14-7/8 in.
General
Fixture Housing Color
Bronze
Light Distribution Shape
Type III
Fixture Housing Material
Aluminum
Lighting Certification
DesignLights Consortium (DLC)
Fixture Lens Material
Polycarbonate
Lumens per Watt
92 lm/W
Fixture Lumens Range
6001 lm and Greater
Max. Fixture Wattage
72
Fixture Sensor Type
No Sensor Included
Max. Operating Temp.
104 Degrees F
Fixture Voltage
480
Min. Operating Temp.
-40 Degrees F
Fixture Wattage
72 W
Rated Life
60,000 hr
Green Certification/Other Recognition
DesignLights Consortium (DLC)® Listed
Recommended Mounting Height
12 to 15 ft
Green Environmental
Product Contributes To Reducing Energy Consumption
Standards
UL 1598
LED Replacement For
250W HPS/MH
Wattage Range
41 to 100 W

Product Description

LED full-size wall packs project a bright, clean light and reach full brightness instantly. They use LED lamps, which last longer and use significantly less energy than wall packs with other lamp types, such as high-pressure sodium or compact fluorescent. They also produce very little heat and can withstand temperature changes and humidity. These wall-mounted outdoor lighting fixtures are commonly used to replace traditional lighting wall packs on commercial and industrial buildings.

Full-size wall packs are wall-mounted outdoor lighting fixtures with a length or width greater than or equal to 11" that are typically used to illuminate large areas, such as commercial building perimeters and office complexes. They cast widespread light to provide added visibility and can help deter vandals and unauthorized access to perimeters. They are also a good choice for doorway and loading areas in need of extra security lighting, or places where dark sky compliance is not required.

Item Barcode
9356100
Wall Pack,LED,4000K,6615 Lm,
 NameItemDescription
Grainger DropshipGrainger Dropship54EN87
UNSPSC CODESUNSPSC CODES39112102
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Wall Pack, LED,4000K,
