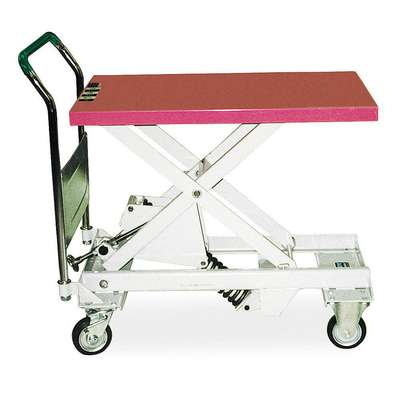

Southworth Self-Leveling Manual Mobile Scissor-Lift Table, 1, 100 lb. Load Capacity, 35-3/4" x 23-1/2"

Hover over image to magnify
Scissor Lift Cart,1100 Lb.,
Scissor Lift Cart,1100 Lb.,

#935446-3 | Pkg Qty: 1

$2,248.12 pkg | $2,248.12 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOUTHWORTH
Operation
Manual
Frame Material
Steel
Overall Height
37-3/8 in.
Handle Height
37-3/8 in.
Overall Length
35-3/4 in.
Handle Type
Raised
Overall Width
23-1/2 in.
Item
Self-Leveling Manual Mobile Scissor-Lift Table
Package Quantity
1
Lift Control
Weight Actuated
Platform Length
35-3/4 in.
Lift Mechanism
Spring
Platform Material
Steel
Load Capacity
1100 lb.
Platform Width
23-1/2 in.
Maximum Lifting Height
31-1/2 in.
Shipping Weight
210 lb.
Mfr. Part Number
DLV-500
Wheel Diameter
5 in.
Minimum Lifting Height
15 in.
Wheel Type
Tread on Core
General
Brake Type
Floor Lock
Platform Gauge
7 ga
Caster Dia.
5 in
Platform LxW
35 3/4 in x 23 1/2 in
Caster Wheel Dia.
5 in
Platform Type
Solid
Includes
Comfort Grip Padding
Scissor Type
Single
Lifting Height Max.
31 1/2 in
Wheel Configuration
(2) Swivel , (2) Rigid with Floor Lock
Lifting Height Min.
15 in
Wheel/Tread Material
Rubber
Overall LxWxH
35 3/4 in x 23 1/2 in x 37 3/8 in

Product Description

Self-leveling manual mobile scissor-lift tables have a spring-actuated lifting mechanism that automatically raises and lowers the tables' platform as items are moved onto and off of it. The operator does not have to press a foot pump or turn a hand crank to raise or lower the platform, which saves time when loading and unloading the tables. The spring tension can be adjusted to fine-tune the platform height for different loads. These tables are used in shipping, receiving, stocking, and manufacturing applications where items will be fed onto and off of the table. The tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables.

Item Barcode
9354463
Scissor Lift Cart,1100 Lb.,
 NameItemDescription
Grainger DropshipGrainger Dropship4ZC02
UNSPSC CODESUNSPSC CODES24101604
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Scissor Lift Cart,1100 lb.
