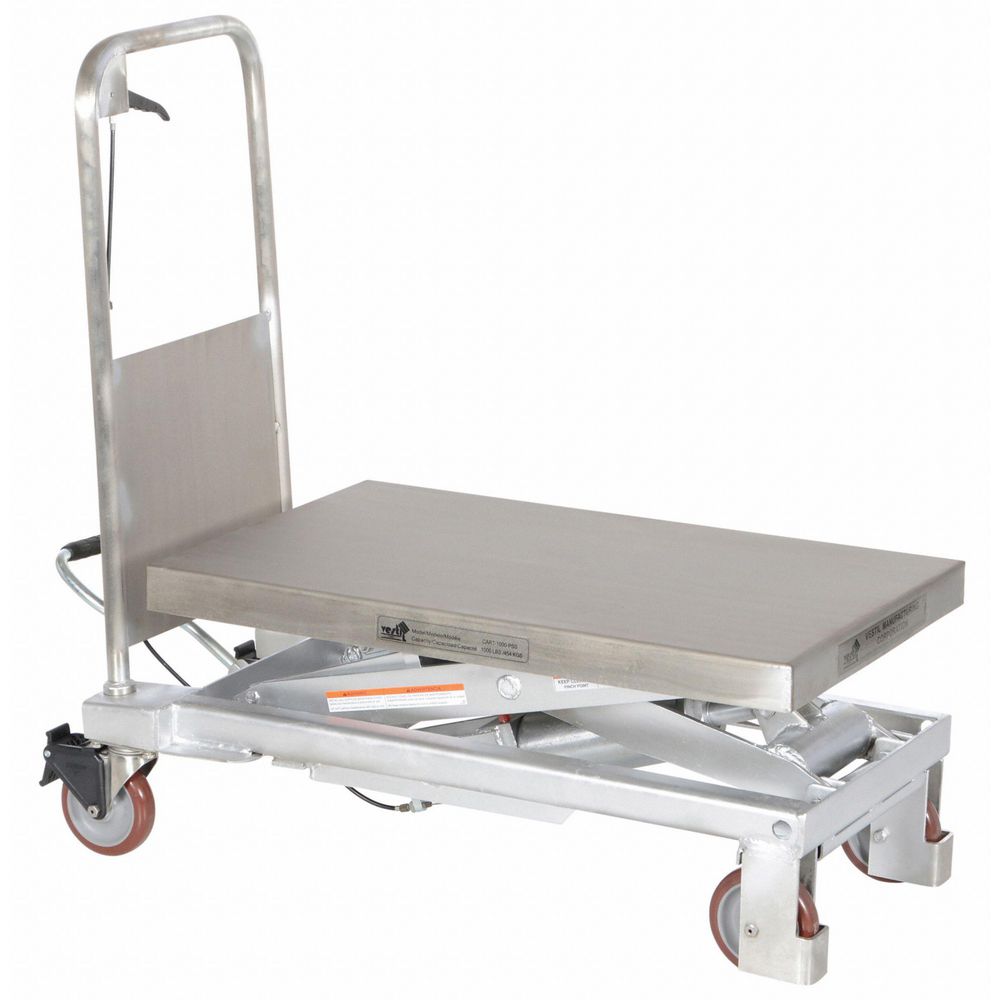

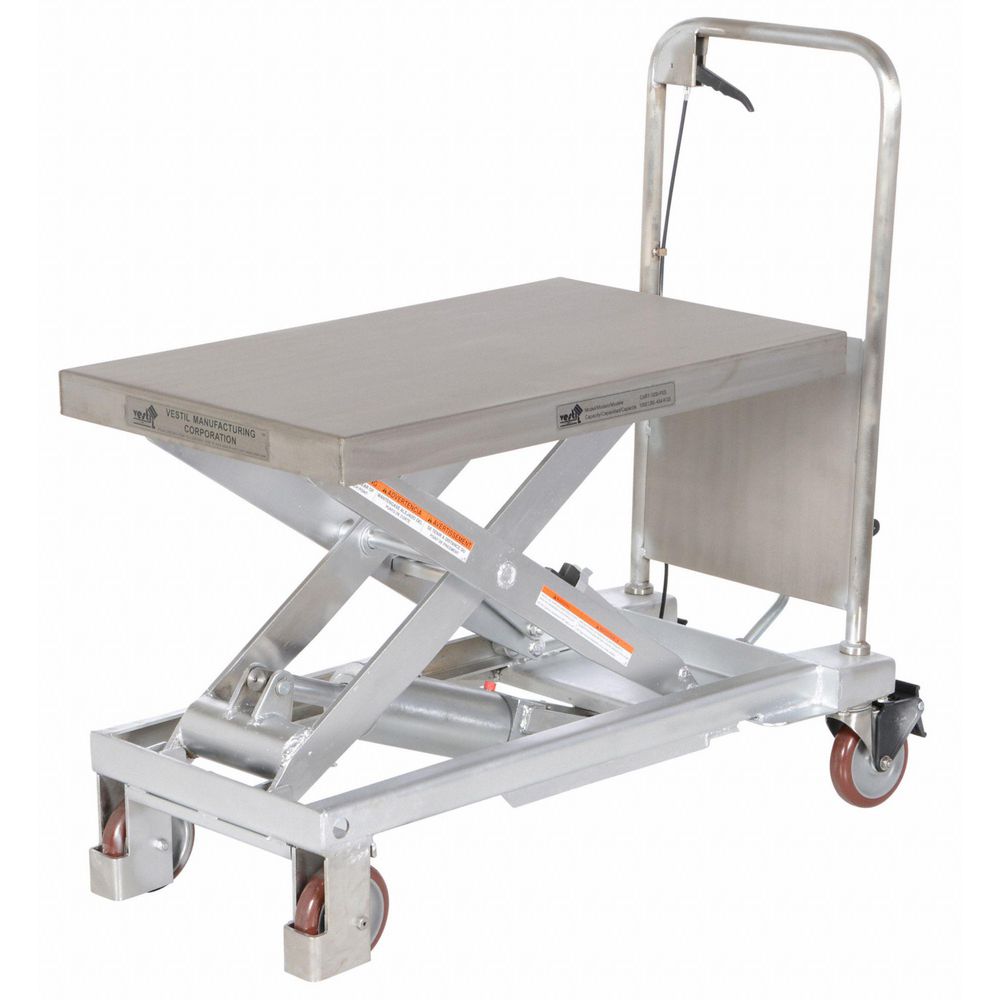

Corrosion-Resistant Manual Mobile Scissor-Lift Table, 1,000 lb Load Capacity

Hover over image to magnify
Scissor Lift Cart,1000 Lb.,SS,
PI_Asset_1757734
PI_Asset_1768644
Scissor Lift Cart,1000 Lb.,SS,
PI_Asset_1757734
PI_Asset_1768644

#935446-1 | Pkg Qty: 1

$2,189.42 pkg | $2,189.42 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Overall Height
35 in.
Frame Material
Stainless Steel
Overall Length
37 in.
Handle Height
35 in.
Overall Width
19-1/2 in.
Handle Type
Raised
Package Quantity
1
Item
Corrosion-Resistant Manual Mobile Scissor-Lift Table
Phase
1
Lift Control
Foot Pump
Platform Length
32-1/4 in.
Lift Mechanism
Hydraulic
Platform Material
Stainless Steel
Load Capacity
1000 lb.
Platform Width
19-1/2 in.
Maximum Lifting Height
35-1/2 in.
Shipping Weight
165 lb.
Mfr. Part Number
CART-1000-PSS
Wheel Diameter
5 in.
Minimum Lifting Height
15-1/2 in.
Wheel Type
Tread on Core
Operation
Manual
General
Brake Type
Face Contact Brake
Lifting Height per Pump
3/4 in
Caster Dia.
5 in
Overall LxWxH
37 in x 19 1/2 in x 35 in
Caster Wheel Dia.
5 in
Platform LxW
32 1/4 in x 19 1/2 in
Elevation per Stroke
3/4"
Platform Type
Solid
Foot Pump
Single Speed
Scissor Type
Single
Includes
Hydraulic Foot Pump
Up Speed Seconds
52 sec
Lifting Height Max.
35 1/2 in
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Lifting Height Min.
15 1/2 in
Wheel/Tread Material
Polyurethane

Product Description

Corrosion-resistant manual mobile scissor-lift tables are made from stainless steel or a combination of steel and stainless steel. They resist rusting when exposed to high humidity, moisture, frequent cleaning, and chemicals. The tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far during loading and unloading. The tables have a hydraulic lifting mechanism that is controlled with a foot pump, and their wheels have polyurethane treads that resist exposure to chemicals and moisture and won't mark floors.

Item Barcode
9354461
Scissor Lift Cart,1000 Lb.,SS,
 NameItemDescription
Grainger DropshipGrainger Dropship2TKY2
UNSPSC CODESUNSPSC CODES24101617
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Scissor Lift Cart,1000 lb.
