SAWSTOP

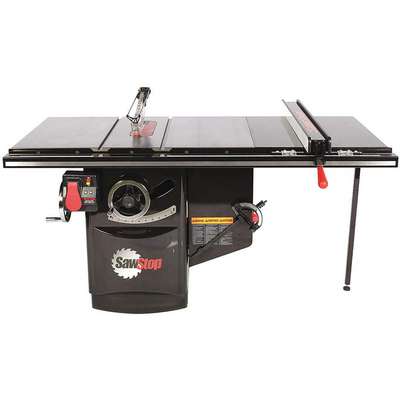

SawStop ICS51230-36 10 in., Corded, Cabinet Table Saw; 4000 RPM Max. Speed, Single Phase

Hover over image to magnify
Cabinet Table Saw,4000 Rpm
PI_Asset_1495570
Cabinet Table Saw,4000 Rpm
PI_Asset_1495570

#935412-2 | Pkg Qty: 1

$6,368.93 pkg | $6,368.93 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Arbor Size
5/8 in.
Overall Height
34 in.
Blade Diameter
10 in.
Overall Width
69-1/4 in.
Brand
SAWSTOP
Package Quantity
1
Current Rating
19.7 A
Phase
Single
Horsepower
5 HP
Shipping Weight
747 lb.
Item
Corded Cabinet Table Saw
Stand Type
Cabinet
Maximum Speed
4000 RPM
Variable Speed
No
Mfr. Part Number
ICS51230-36
Voltage
230V AC
General
Arbor Shape
Round
Max. Cutting Depth @ 0 Deg.
3-1/8 in.
Automatic Blade Safety Retraction
Yes
Max. Cutting Depth @ 45 Deg.
2-1/4 in.
Bevel Angle Range
0 Degrees to 45 Degrees Left
Table Front of Blade
11 in.
Max. Cut Width Left of Blade
12-1/2 in.
Table Length
30 in.
Max. Cut Width Right of Blade
36-1/2 in.
Table Surface w/Extension
67-3/4 in. x 30 in.

Product Description

These cabinet table saws have a safety feature that automatically retracts the saw blade when any part of the worker's body, such as hands or arms, touches the blade. Floorstanding cabinet table saws have an extended surface on both sides of the blade to support large workpieces and sheet goods, providing more precise cuts and control than circular saws and portable table saws. Cabinet table saws are plugged into a wired power source and are not intended to be moved.
