ASHCROFT

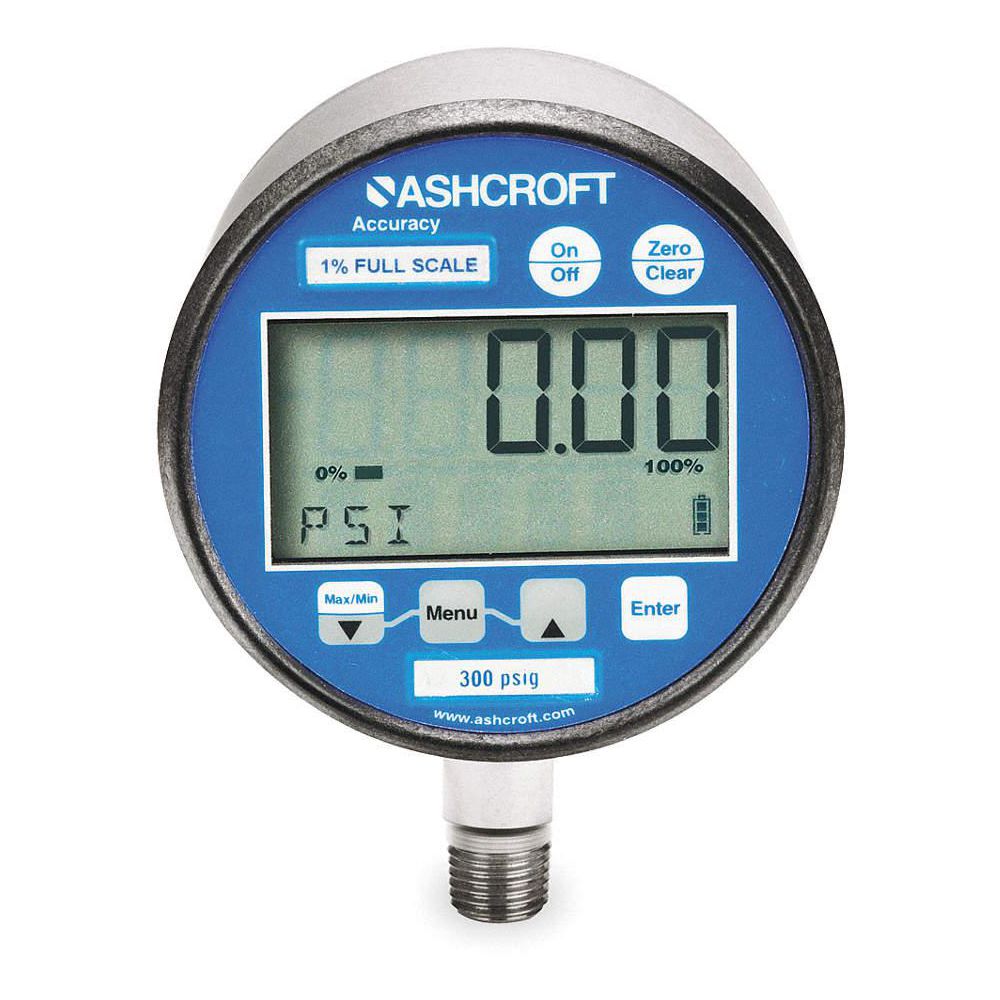

ASHCROFT Digital Pressure Gauge: Test Pressure Gauge, 0 to 300 psi, Standard Gauge, 3" Dial, Bottom

Hover over image to magnify
Gauge,Pressure,Digital
Gauge,Pressure,Digital

#935389-7 | Pkg Qty: 1

$438.73 pkg | $438.73 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Battery Run Time
400 hr.
Gauge Primary Range Units
psi
Battery Type
(2) AA Batteries
Gauge Sensor Material
Stainless Steel
Brand
ASHCROFT
Gauge Socket Material
316 Stainless Steel
Burst Pressure
2400 psi
Hazardous Location Rating
Not Rated
Calibration Certificate Included
No
Item
Digital Test Pressure Gauge
Display
LCD
Mfr. Part Number
302074SD02L300BL
Gauge Accuracy
±0.25%
Mfr. Warranty Length
1 yr.
Gauge Application
Hydraulics, Pneumatics
Mounting Type
Stem-Mount
Gauge Case Color
Gray
Non-Sparking
No
Gauge Case Material
Stainless Steel
Number of Digits
5
Gauge Connection Location
Bottom
Package Quantity
1
Gauge Connection Size
1/4 in.
Power Source
Battery
Gauge Connection Type
MNPT
Pressure Range
0 to 300
Gauge Lens Material
Polyester
Series
2074
Gauge Nominal Dial Size
3 in.
Shipping Weight
.85 lb.
Gauge Panel Mountable
No
General
Auto-Shutoff
Yes
Manufacturer Warranty Length
1 yr
Auto-Shutoff Time
2 min, 5 min, 15 min, 30 min
Memory Features
Min/Max
Backlit Screen
Yes
Nominal Dial Size
3 in
Bar Graph
10 Segments
Number of Display Digits
5
Case Construction
Corrosion Resistant
Pressure Gauge Type
Test Pressure Gauge
Case Depth
1.7 in
Pressure Range Type
Pressure
Case Diameter
3.34 in
Primary Display Range
0 to 300
Case Shape
Round
Primary Display Units
psi
Data Update Frequency
100 msec, 200 msec, 500 msec, 1 sec
Primary Range
0 to 300
Digit Height
0.6 in
Primary Units
psi
Digital Gauge Accuracy
+/-0.25% Full Scale
Process Connection
1/4 in NPT Male
Digital Gauge Display Units
bar, ft wc, in Hg, kg/sq cm, kPa, mbar, MPa, psi
Process Connection Gender
Male
Digital Pressure and Vacuum Gauge Type
Digital Pressure Gauge
Process Connection Location
Bottom
Display Range
0 to 15515 mm Hg, 0 to 2.0684 Mpa, 0 to 20.685 bar, 0 to 2068.4 kpa, 0 to 21.093 kg/sq cm, 0 to 300 psi, 0 to 610.8 in Hg, 0 to 692.3 ft H2O
Process Connection Size
1/4 in
Display Screen Type
LCD
Process Connection Type
NPT
Gauge Mounting Type
Stem-Mount
Sensor Material
Stainless Steel
Gauge Wetted Parts
Stainless Steel
Sensor Type
Diaphragm
IP/NEMA Rating
IP65
Standards
CSA, FM
Includes
Battery and Instructions
Test Pressure Gauge Type
Test Pressure Gauge
Includes Batteries
Yes
Weatherproof
Yes
Includes Rubber Boot
No
With Calibration Certificate
Standard Gauge
Languages
English

Product Description

Digital Pressure Gauge, 3 in, Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Stainless Steel, Gauge Connection Type MNPT, Gauge Connection Size 1/4 in, Gauge Connection Location Bottom, Gauge Primary Range Units psi, Gauge Primary Range Values 0 to 300, Digital Gauge Accuracy +/-0.25 Percent Full Scale, Display LCD, Number of Display Digits 5, Socket Material 316 Stainless Steel, Case Material Stainless Steel, Case Color Gray
