CONGRESS

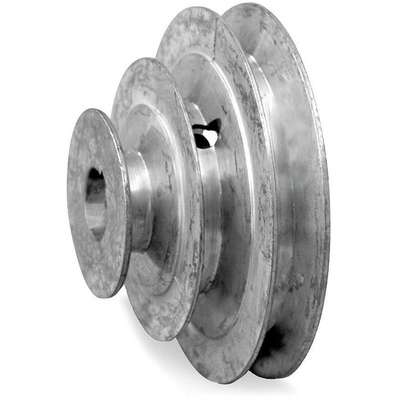

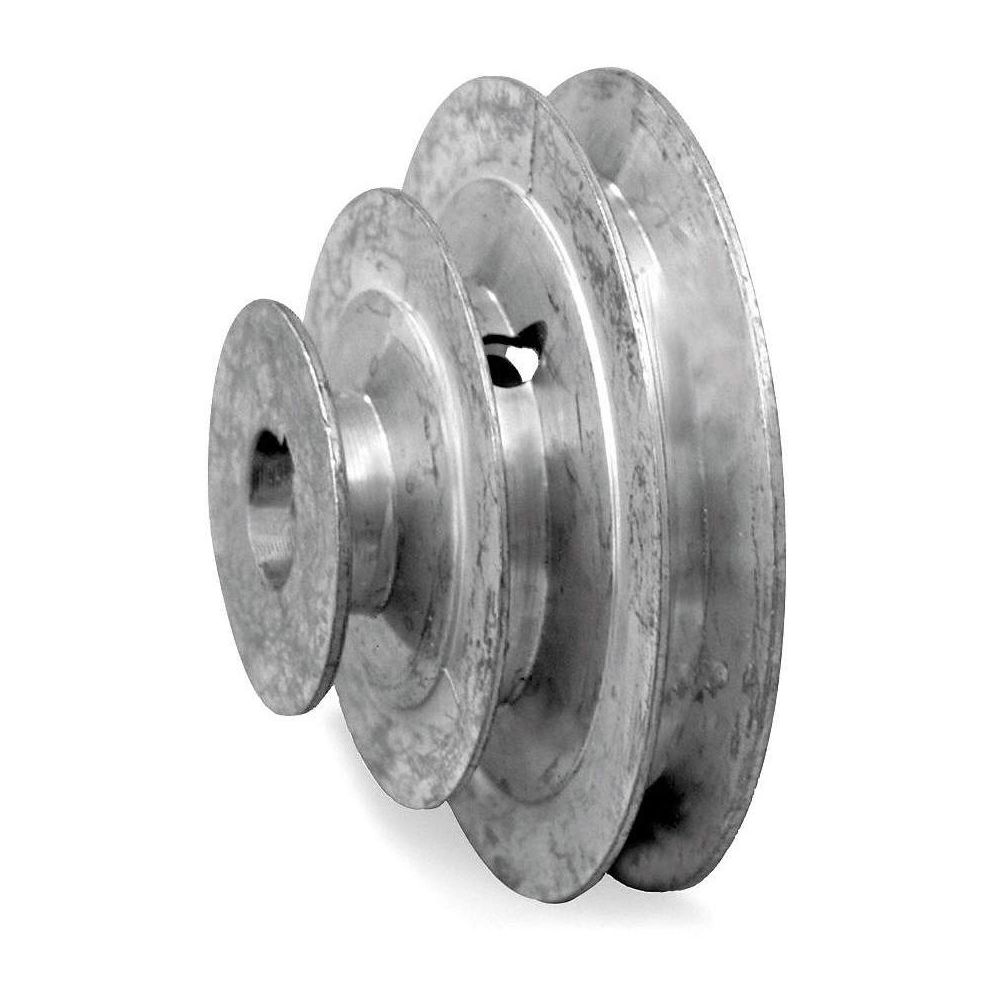

Congress Stepped V-Belt Pulley: 3 Grooves, 3 in_4 in_5" Pulley Outside Dia., Die Cast Zamak 3

Hover over image to magnify
V-Belt Pulley,3.00", 4.00", 5.
V-Belt Pulley,3.00", 4.00", 5.
Double tap image to magnify
V-Belt Pulley,3.00", 4.00", 5.
V-Belt Pulley,3.00", 4.00", 5.

#935346-2Pkg Qty: 1

$89.11 pkg | $89.11 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 08.
|

Technical Specifications

Key Specifications
Brand
CONGRESS
Mfr. Part Number
SCA500-3X062KW
Construction
Solid
Package Quantity
1
Industry Number
SCA500-3X062KW
Shipping Weight
1.4 lb.
Item
Stepped V-Belt Pulley
General
Fits Shaft Dia.
1 in
Material Grade
Zamak 3
For Belt Trade Size
4L, A
Number of Grooves
3
For V-Belt Section
4L, A
Pulley Bore Dia.
1 in
For V-Belt Type
Classical
Pulley Bore Type
Fixed Bore
Includes
Reducer Bushing
Pulley Material
Die Cast Zamak 3
Keyway
Yes
Pulley Outside Dia.
3 in, 4 in, 5 in
Keyway Size Type
No Keyway
Resistance Properties
Corrosion Resistant, Spark Free
Largest Step Outside Diameter
5 in
Set Screw Included
Yes
Length through Bore
1 11/16 in
Smallest Step Outside Diameter
3 in
Material Fabrication
Cast
Step Outside Diameters
3 in, 4 in, 5 in

Product Description

Stepped V-Belt Pulley, For V-Belt Section 4L, A, Number of Grooves 3, Pulley Outside Dia. 3.0 in, 4.0 in, 5.0 in, Pulley Bore Type Fixed Bore, Pulley Bore Dia. 5/8 in or 1/2 in, Pulley Material Die Cast Zamak 3, None Bushing Required, Fits Shaft Dia. 5/8 in or 1/2 in, Construction Solid, Industry Number SCA500-3X062KW, Keyway Size Type No Keyway, Set Screw Included Yes, Includes Reducer Bushing
