HOFFMAN

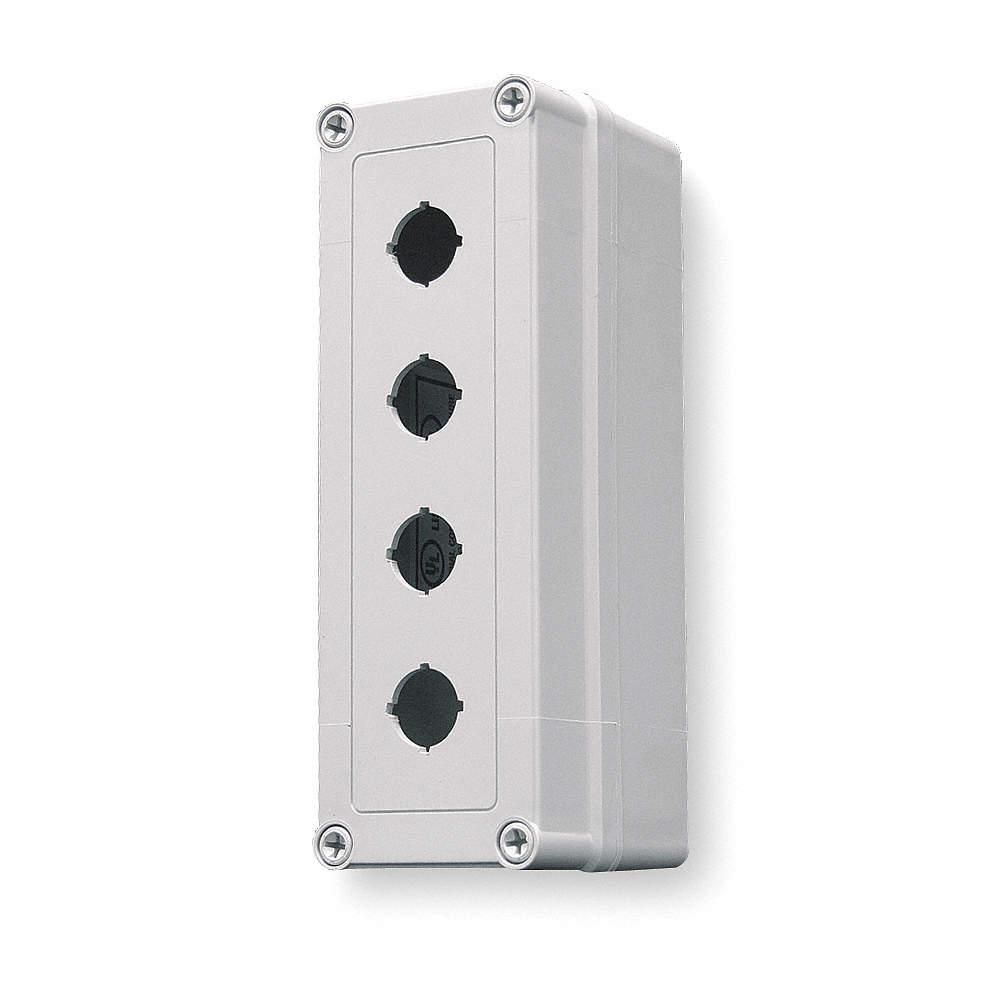

Hoffman Pushbutton Enclosure, Number of Columns 1, Number of Holes 4, 4X NEMA Rating

Hover over image to magnify
Pushbutton Enclosure,22mm,8.74
Pushbutton Enclosure,22mm,8.74

#935345-7 | Pkg Qty: 1

$78.21 pkg | $78.21 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HOFFMAN
Material of Construction
Plastic
Color Family
Gray
Mfr. Part Number
VM933-PBM4
Conduit Size
No Conduit Entrance Holes Provided
NEMA Rating
4X
Depth
3.31 in.
Number of Columns
1
Dimensions
8.74 in. H x 2.84 in. W x 3.31 in. D
Number of Holes
4
Height
8.74 in.
Package Quantity
1
Hole Size
22 mm
Shipping Weight
.95 lb.
Item
Pushbutton Enclosure
Width
2.84 in.
Material
Plastic
General
Standards
IP66 Rating, ULType 3, 3R, 4, 4x, 12 And 13

Product Description

Nonmetallic Enclosures for 22mm Operators

  • Temp. range: -40° to 280°F Rated IP66 NEMA rated 4X To maintain 4X rating a UL NEMA 4X device must be used with the enclosure. Made of impact- and corrosion-resistant Valox® crystalline thermoplastic polyester. Molded internal bosses for back panel, component mounting, and DIN rails. Silicone gasket; no hinge. Cover and base meet with tongue-and-groove design for tight seal. Include nonmetallic cover screws. UL Listed and CSA Certified.
