OMRON

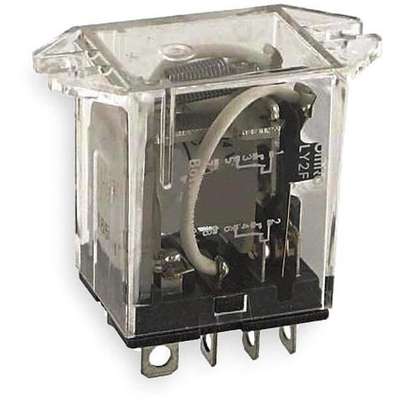

Omron 24V DC, 8-Pin Flange Mount Relay; Flange Location: Top, AC Contact Rating: 10A @ 120V

Hover over image to magnify
Flange Relay,24VDC,8 Pins,10A
Flange Relay,24VDC,8 Pins,10A

#935270-5 | Pkg Qty: 1

$12.51 pkg | $12.51 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Base Type
Square
Item
Flange Mount Relay
Brand
OMRON
Mfr. Part Number
LY2F-DC24
Coil VA Rating
0.9
Mounting
Top
Coil Volts
24 VDC
Number of Poles
2
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Alloy
Pins
8
Contact Rating
10A @ 110 VAC/24 VDC
Push To Test
Manual
Electrical Connection
0.200 in. Solder Terminals
Shipping Weight
.08 lb.
Flange Location
Top
Socket Code
D
HP @ 120 V
1/3 hp
Status Indicator
No
Hz
50/60
Type
Flange, Top Mount
General
AC Contact Rating - Relay
10A @ 120V
HP @ 120V
1/3 hp
Body Depth - Relay
1.14 in
Mounting - Relay
Top Flange
Body Height - Relay
1.4 in
Number of Pins - Relay
8
Body Width - Relay
0.89 in
Overall Height - Relay
1.65 in
Contact Form - Relay
DPDT
Power Consumption - Relay
0.9 W
DC Contact Rating - Relay
10A @ 24V
Socket Code - Relay
J
Features
Arc Barrier Equipped, High Dielectric Strength (2,000 VAC)
Standards
CE Marked, CSA Certified, SE V, VDE

Product Description

Flange Mount Relay, Coil Volts 24V DC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Top Flange, Power Consumption - Relay 0.9 W, Socket Code - Relay J, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals

Item Barcode
9352705
Flange Relay,24VDC,8 Pins,10A
 NameItemDescription
Grainger DropshipGrainger Dropship1YCZ6
UNSPSC CODESUNSPSC CODES39122333
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Flange Relay, 24VDC,8 Pins,
