SPEEDAIRE

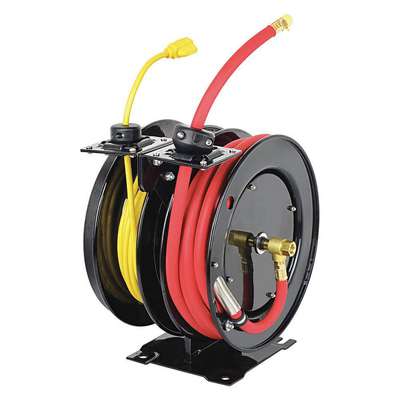

Dual Reel Spring Return Hose Reel, Air, Electric, 0 PSI, 300 PSI, Combination Type Air/Electric

Hover over image to magnify
Dual Hose Reel,Spring,3/8 In
PI_Asset_1761434
Dual Hose Reel,Spring,3/8 In
PI_Asset_1761434

#935211-1 | Pkg Qty: 1

$526.34 pkg | $526.34 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SPEEDAIRE
Mounting Location
Ceiling, Floor, Wall
Cord Color
Yellow
Number of Conductors
0
Drive Type
Spring Return
Number of Guide Arms
Single Arm
Enclosed
No
Number of Outlets
1
Fitting Size
3/8 in. x 3/8 in.
Overall Dimensions
14 in. L x 16 in. W x 16 in. H
Fitting Type
Cord x Cord, NPT x NPT
Overall Height
16 in.
Hose Capacity
25 ft. (3/8 in ID)
Package Quantity
1
Hose Reel Group
Spring Return Hose Reels
Pedestal Type
Single Pedestal
Includes Hose
Yes
Reel Color
Green
Item
Dual Reel Spring Return Hose Reel
Reel Diameter
13-5/8 in.
Latch Type
Locking
Reel Material
Steel
Maximum Operating Temperature
140 deg. F
Reel Width
14 in.
Maximum Pressure
300 psi
Seal Material
Rubber
Mfr. Part Number
45UZ55
Shipping Weight
41 lb.
Minimum Operating Temperature
-4 deg. F
Speed Limited Retraction
No
Mounting Location
Ceiling, Floor, Wall
Voltage
120 VAC
General
Base Motion Type
Swivel
Hose Inside Dia.
3/8 in
Bearing Construction
Permanently Lubricated
Hose Reel Primary Application
Air, Electric
Combination Type
Air/Electric
Hose Reel Product Group
Combination Air/Electric Reel
Cord Current
13 A
Hose Reel Type
Wall Mount Hose Reel
Cord Gauge
14 AWG
Include Hose Stop
Yes
Features
Rust Proof Finish
Includes
Cord, Hose
Feeder Cord Ending
3 Pin Plug
Includes Cord
Yes
Feeder Cord Ending Configuration
NEMA 1-15P
Mount Base Height
8 1/2 in
Feeder Cord Length
25 ft
Mount Base Width
7 3/4 in
Fitting Gender
Male x Male
Mount Hole Diameter
1/2 in
For Dual Hose
Yes
Mounting Hole Center to Center Height
6 7/8 in
Hose 1 Cover Material
Hybrid Polymer
Mounting Hole Center to Center Width
6 in
Hose 1 Fitting A Gender
Male
Number of Mount Holes
4
Hose 1 Fitting A Material
Brass
Plug Type
NEMA 5-15P
Hose 1 Fitting A Size
3/8 in
Reel Finish
Powder Coated
Hose 1 Fitting A Type
NPT
Retractable Cord Ending
Single Plug
Hose 1 Fitting B Gender
Male
Retractable Cord Ending Configuration
NEMA 5-15R
Hose 1 Fitting B Material
Brass
Retractable Cord Length
25 ft
Hose 1 Fitting B Size
3/8 in
Swivel Inlet Gender
Female
Hose 1 Fitting B Type
NPT
Swivel Inlet Thread Size
3/8 in - 18
Hose 1 Inside Diameter
3/8 in
Swivel Inlet Type
NPT
Hose 1 Length
25 ft
Swivel Material
Polyoxymethylene
Hose 1 Outside Diameter
5/8 in
Swivel Outlet Gender
Female
Hose 1 Tube Material
Hybrid Polymer
Swivel Outlet Thread Size
3/8 in - 18
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT

Product Description

Air and electric combination spring-return hose reels combine two reels in one compact assembly for applications requiring pneumatic air and an electrical power feed. The two reels operate independently, but are mounted together on a single expanded, steel base for extra stability. These low-pressure (up to 500 psi), combination reels mount indoors to the floor, wall, ceiling, or a bench, and require only one mounting pattern to save installation time. The guide arm adjusts to the wall, floor, and overhead positions. The spring-return, also called self-retracting, spring-driven, or spring rewind, allows users to manually rewind hose onto the reel without an external power source. The spring-return has a locking ratchet and pawl that locks into place once users have pulled the hose to the desired length. The ratchet is released by pulling the hose out, and then hose can be rewound onto the reel. Air and electric dual-purpose reels hold air and electric hoses/cables and are used with pneumatic and power tools, with air services, and as a light source.
