JLG

Jlg Personnel Lift, Push-Around Drive, Stored Power Lift Power Source, 13 ft Max. Work Height

Hover over image to magnify
Personnel Lift,50" L,29" W,10"
PI_Asset_1760139
Personnel Lift,50" L,29" W,10"
PI_Asset_1760139

#935191-8 | Pkg Qty: 1

$6,607.75 pkg | $6,607.75 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
JLG
Overall Length
50 in.
Closed Height
7 ft. 2-1/2 in.
Overall Width
29 in.
Handrail Height
71 in.
Package Quantity
1
Item
Personnel Lift
Platform Depth
33 in.
Load Capacity
330 lb.
Power Source
Stored Power Lift
Mfr. Part Number
EcoLift70
Shipping Weight
672 lb.
Mfr. Warranty Length
1 yr.
General
Caster Dia.
8 in
Max. Speed Lowered
3/16 mph
Casters
Yes
Max. Work Height
13 ft
Gross Vehicle Weight
672 lb
Outrigger Footprint L
No Outriggers
Ground Clearance
4 in
Outrigger Footprint W
No Outriggers
Mast
Steel
Standards
ANSI A92.3-2006, CSA B354.4, 29 CFR 1910.67, 29 CFR 1926.453
Max. Platform Height
7 ft 2 in
Stowed Height
77 in
Max. Speed Elevated
3/16 mph

Product Description

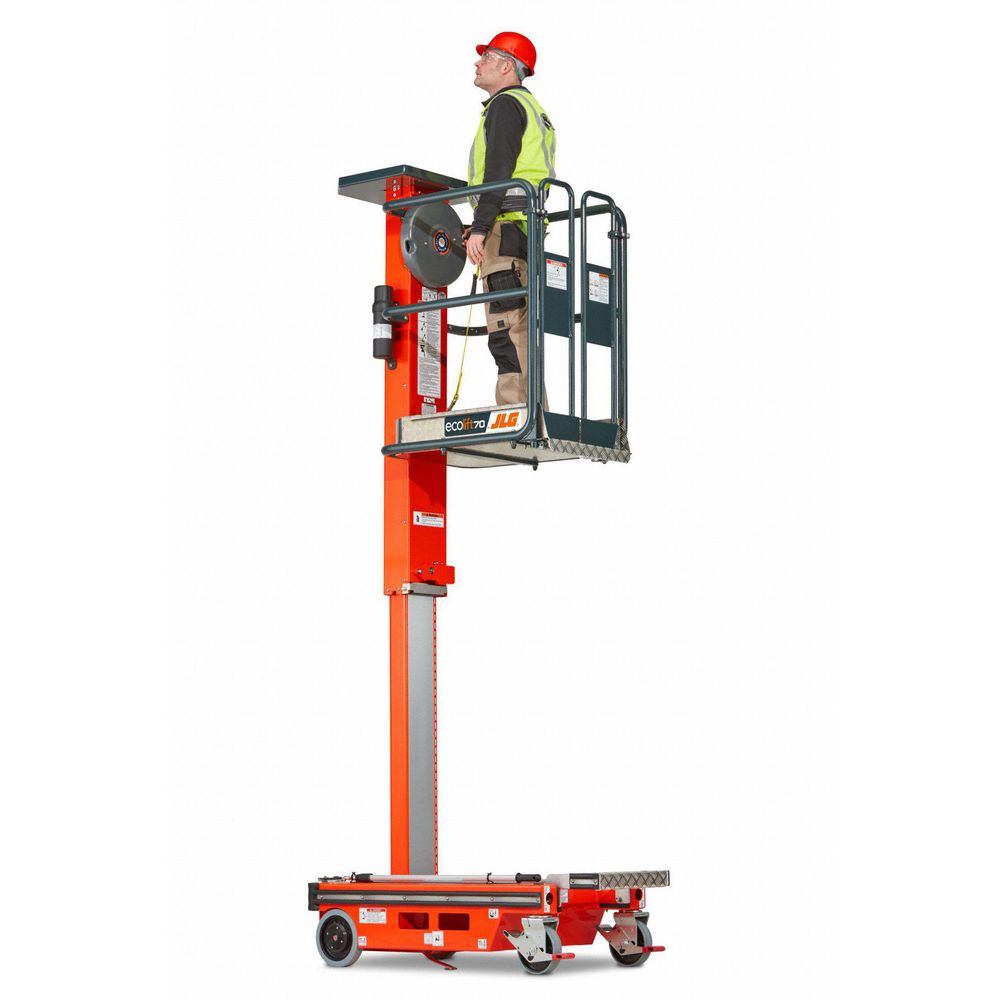

This JLG® EcoLift™ Stored Power Personnel Lift provides clean, quiet lift/lower operation with no need for batteries or hydraulic oil, to help give you a safer, more-effective alternative to ladders. Just push the unit into place, crank the handle to adjust the height, and get to work. The sturdy base and automatic locking wheels help you work safely and confidently with both hands, at heights up to 13 ft. The compact footprint fits through narrow doorways and is easy to maneuver around facilities. The low maintenance and simple-to-use lift is suitable for facility, plant and HVAC maintenance, electrical and security installations, renovations, and remodeling.

Item Barcode
9351918
Personnel Lift,50" L,29" W,10"
 NameItemDescription
Grainger DropshipGrainger Dropship52XE87
UNSPSC CODESUNSPSC CODES24101604
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Personnel Lift,50" L,
