THERMOID

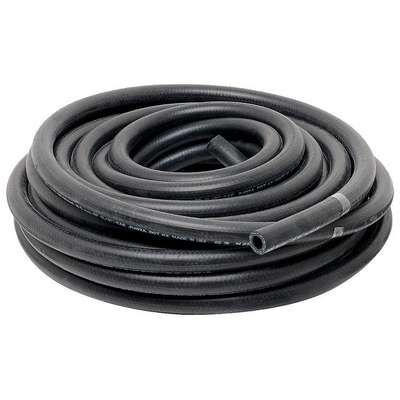

Fuel Hose Tube Material Nitrile, Hose Cover Material Nitrile, 5/16", 25 ft

Hover over image to magnify
Fuel Hose,5/16" Id x 25 Ft. L,
Fuel Hose,5/16" Id x 25 Ft. L,

#934857-6 | Pkg Qty: 1

$36.73 pkg | $36.73 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
THERMOID
Package Quantity
1
Color Family
Black
Shipping Weight
2.75 lb.
Mfr. Part Number
667505225
General
Compatible Chemicals
Air, Diesel Fuel, Fresh Water, Gasoline
Hose Reinforcement Material
Fiber
For Media Type
Air, Diesel Fuel, Gasoline, Water
Hose Reinforcement Type
Braid
Hose Configuration
Bulk Hose
Hose Tube Material
Nitrile
Hose Cover Material
Nitrile
Max. Working Pressure @ 70 F
50 psi
Hose Inside Dia.
5/16 in
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Xylene
Hose Outside Dia.
9/16 in
Temp. Range
257 Degrees F

Product Description

These oil-resistant fuel hoses have a nitrile tube and a nitrile and PVC (polyvinyl chloride) cover. The hoses are used for return fuel lines, positive crankcase ventilation (PCV) systems, and evaporative emission-control (EEC) systems in motor vehicles. They are approved for use with leaded and unleaded gasoline, diesel gasoline blends or ethanol (E85), methanol, and ethers up to legal limits allowed by the EPA. These hoses are not for use as pressure lines on fuel-injected engines or in cooling-system applications.

Automotive fuel hoses keep vehicles running by moving fuel throughout a vehicle to where it's needed. They are made of materials that resist permeation and can withstand exposure to specific types of fuel. They can also tolerate the high temperatures of high-performance vehicle engines.
