SOTERA

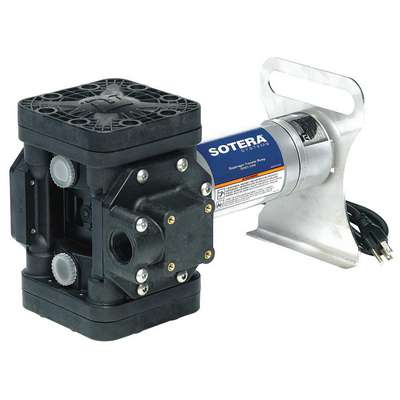

Electric Operated Drum Pump, Basic Pump without Discharge Hose, 115V AC, 1/4 hp Motor HP

Hover over image to magnify
Electric Drum Pump,115VAC,13
Electric Drum Pump,115VAC,13

#934693-1 | Pkg Qty: 1

$822.21 pkg | $822.21 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOTERA
Motor Type
Capacitor Start
DEF Compatible
Yes
Outlet Size
1"
Duty Cycle
Intermittent
Pack Quantity
1
Food Grade
No
Phase
1
For Use On
Chemicals
Piston
Santoprene
Full Load Amps
2-1/2
Piston Material
Santoprene
GPM
13
Power Source
Electric
Inlet Size
1" NPT
Seal Material
Fluorocarbon
Item
Electric Operated Drum Pump
Shipping Weight
21.05 lb.
Maximum Head
34 ft.
Type
Diaphragm
Metered
No
Variable Speed
No
Mfr. Part Number
SS460BX731
Voltage
115 VAC
Mfr. Warranty Length
1 yr.
Wetted Materials
Fluorocarbon, Polypropylene, Santoprene, Stainless Steel
Motor Enclosure
TENV
pH Range
3.6 to 11.9
Motor RPM
3,450 RPM
General
Application
Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics
Max. Fluid Temp.
130 Degrees F
Compatible Chemicals
Fertilizers, Fungicides, Herbicides, Motor Oil
Max. Head - Pumps
34 ft
Discharge Connection Type
NPT
Max. Outlet Pressure
15 psi
Discharge Tube Outlet ID
3/4 in
Max. Viscosity
3,000 cps
Discharge Tube Outlet OD
1 in
Noise Level
77 db
For Container Size
55 gal
Nominal Voltage
110V AC
For Container Type
Drum
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formic Acid, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
For Media Type
Fertilizers, Fungicides, Herbicides, Motor Oil
Number of Phases
1
For Use With
Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents
Pump Connection ID
1 in
Frequency (Hz)
60
Pump Connection OD
1 1/4 in
Housing Material - Pumps
Polypropylene
Pump Connection Type
FNPT
Includes
Pump only
Pump Package Type
Basic Pump without Discharge Hose
Includes Suction Tube
Yes
Rated Voltage
115V AC
Max. Flow Rate
13 gpm
Runs Dry
Yes

Product Description

Agricultural electric drum pumps withstand contact with agricultural products such as fertilizers, herbicides, pesticides, and fungicides. They typically run on DC voltage so they can be powered by farm equipment batteries for use in the field or remote locations where an electrical outlet is not available. They're commonly used when dispensing, transferring, and applying large amounts of agricultural chemicals in farming, gardening, and landscaping applications.
