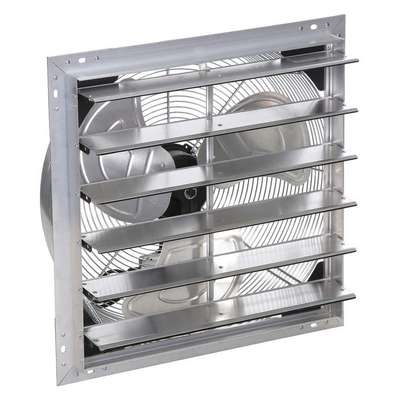

Airmaster Fan 1/20 Hp 20 in-Dia. 115 VAC V Shutter Mount Exhaust Fan, 20-1/2" Square Opening Required
#934641-4 | Pkg Qty: 1
Drop Ship Item
Technical Specifications
Key Specifications
General
Product Description
Shutter Mount Exhaust Fan, Blade Dia. 20 in, Number of Speeds 1, Fan Voltage 115V AC, CFM @ 0.000-In. SP 2235, Exhaust/Supply Fan Motor HP 1/20 hp, Square Opening Required 20 1/2 in, CFM @ 0.125-In. SP 920, Sones @ 0.000-In. SP @ 5 Ft. 9, Motor RPM 1050, Hz 60, Phase 1, Full Load Amps 2.35, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Open Dripproof, Motor Insulation Class B, Bearing Type Ball, Height 23 1/8 in, Width 23 1/8 in, Max. Depth 11 in, Frame Material Aluminum
Expertly Selected Product Pairings
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 46Z430 | |
 | UNSPSC CODES | 40101502 | |
 | VMRS (ATA) CODES | 053-006-009 | Exhaust Fan, 20 In,115V,1/ |
