LEESON

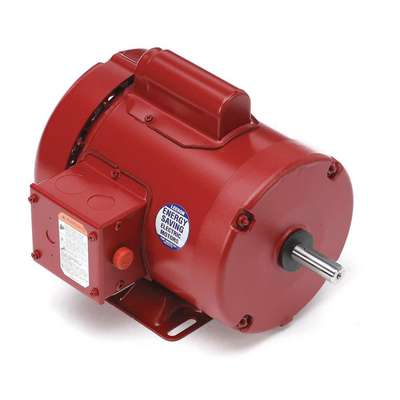

Leeson Farm Duty Motor, 1/2 HP, Capacitor-Start, Nameplate RPM 1,725, Voltage 115/208-230V AC
Hover over image to magnify
#934573-2 | Pkg Qty: 1
$601.37 pkg | $601.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LEESON
Mfr. Warranty Length
1 yr.
Duty
Continuous
Motor Design
Capacitor-Start
Duty Cycle
Continuous
Nameplate RPM
1725
Finish
Enamel
Overall Length
10-1/2 in.
Frame
56
Package Quantity
1
Full Load Amps
8.8/4.4
Phase
Single
Hz
60
Shaft Length
1-7/8 in.
Item
Farm Duty Motor
Shipping Weight
24.3 lb.
Length Less Shaft
8-5/8 in.
Voltage
115/208-230 VAC
Mfr. Part Number
110086
General
Capacitor Required
Yes
Motor Shaft Design
Keyed
HP
1/2
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Sub Application
High Torque
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Manual
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
66 %
Motor Efficiency Group
Standard Efficient
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Shaft Dia.
5/8 in
Motor Frame Material
Steel
Standards
CSA (LR2025), UL (E49747)
Motor Mounting Position
Horizontal
Usable @ 208V
Yes
Motor Mounting Type
Rigid Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Service Factor
1.15
Product Description
High torque farm-duty AC motors can power conveyors, silo unloaders, barn cleaners, compressors, and manure pumps under heavy load conditions. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Item Barcode
General Purpose Farm Duty
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48ZJ39 | |
 | UNSPSC CODES | 26101103 | |
 | VMRS (ATA) CODES | 053-006-009 | General Purpose Farm |
