CONDUCTIX-WAMPFLER

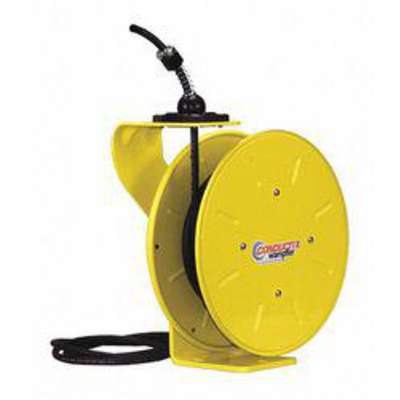

Conductix-Wampfler 50 ft. Extension Cord Reel; 125 VAC; Yellow Reel Color

Hover over image to magnify
Cord Reel,50ft,12 Awg,Bare,
Cord Reel,50ft,12 Awg,Bare,

#934432-1 | Pkg Qty: 1

$914.14 pkg | $914.14 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CONDUCTIX-WAMPFLER
Overall Depth
7-3/4 in.
Cord Color
Black
Overall Height
13-3/4 in.
Cord Included
Yes
Overall Width
12 in.
Cord Length
50 ft.
Package Quantity
1
Enclosed Reel
No
Reel Color
Yellow
Enclosure Rating
NE mA 2
Reel Material
Steel
Feeder Cord Ending
Grounding Plug
Reel Mounting
Ceiling, Floor, Wall
Feeder Cord Ending NEMA Configuration
5-20P
Shipping Weight
36.47 lb.
Feeder Cord Length
6 ft.
Slip Ring Rating
30A @ 600 V
Holds
50 ft. of 12/3
Voltage
125 VAC
Item
Extension Cord Reel
Watts
2125 W
Mfr. Part Number
XA-121120305011
Wire Size
12 AWG
Number of Conductors
3
General
Cord Length - Ext. Cords and Outlet Strips
50 ft.
Retractable Cord Ending
Flying Lead
Feeder Cord Ending Configuration
NEMA 5-20P
Retractable Cord Ending Configuration
Flying Lead
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Retractable Cord Length
50 ft
Grade - Ext. Cords and Outlet Strips
Heavy Industrial
Standards
CSA, NE mA 2, UL
Includes Cord
Yes
Temp. Range
-22° to 194°F
Indoor / Outdoor
Indoor/Outdoor
Temp. Rating
-22° to 194°F
Location
Outdoor
Tension Method
Ratchet Lock
Max. Amps - Ext. Cords and Outlet Strips
20.0
Trade Designation
SJOW
NEC Cord Designation - Ext. Cords and Outlet Strips
SJOW
Voltage - Ext. Cords and Outlet Strips
125VAC
Reel Capacity
50 ft of 12/3
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.

Item Barcode
9344321
Cord Reel,50ft,12 Awg,Bare,
 NameItemDescription
Grainger DropshipGrainger Dropship421X34
UNSPSC CODESUNSPSC CODES26121635
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Cord Reel, 50ft,12 AWG,
