DAYTON

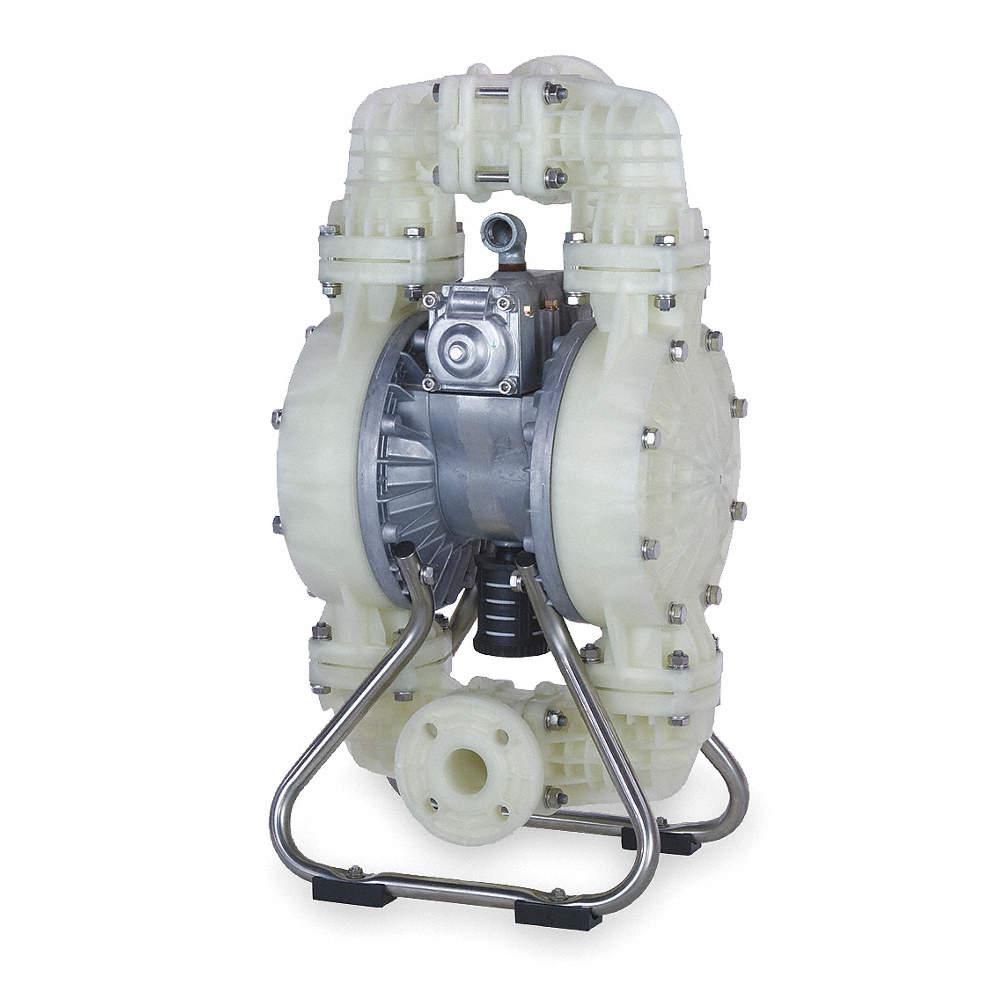

Double Diaphragm Pump, 115 GPM Max. Flow, Santoprene, Single Manifold Connection, 1-1/2"

Hover over image to magnify
Pump,Aodd,Polypropylene,1 1/2",
PI_Asset_1495992
Pump,Aodd,Polypropylene,1 1/2",
PI_Asset_1495992

#934217-1 | Pkg Qty: 1

$3,297.00 pkg | $3,297.00 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Inlet Size
1/2 in. FNPT
Mfr. Part Number
3HJW5
Ball Material
EPDM
Mfr. Warranty Length
1 yr.
Brand
DAYTON
Package Quantity
1
Connection Style
Flange
Pump Operation Type
Air Operated
Inlet/Outlet Size
1-1/2 in.
Shipping Weight
79 lb.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
16 in.
General
Diaphragm Material - Pumps
Santoprene(R)
Max. Flow GPM
115 gpm
Housing Material - Pumps
Polypropylene
Max. Operating Pressure
100 psi
Max. Dia. Solids
9/32 in
Max. Temp - Pumps
180 Degrees F
Max. Flow
115 gpm

Product Description

This unit can easily pump slurries, solvents, and high-viscosity liquids such as paints and inks. It features run-dry capability, and is self-priming to 15 ft. wet, 10 ft. dry. The all-bolted body is injection-molded and structurally reinforced with a fiber fill. Polypropylene resists many caustics and a wide variety of nonaggressive water-based liquids. The spring-assisted air valve has proprietary seal rings that never require lubrication.
