APPLETON ELECTRIC

Appleton Electric Conduit Outlet Body, Hazardous Location No, Conduit Outlet Body Material Copper Free Aluminum

Hover over image to magnify

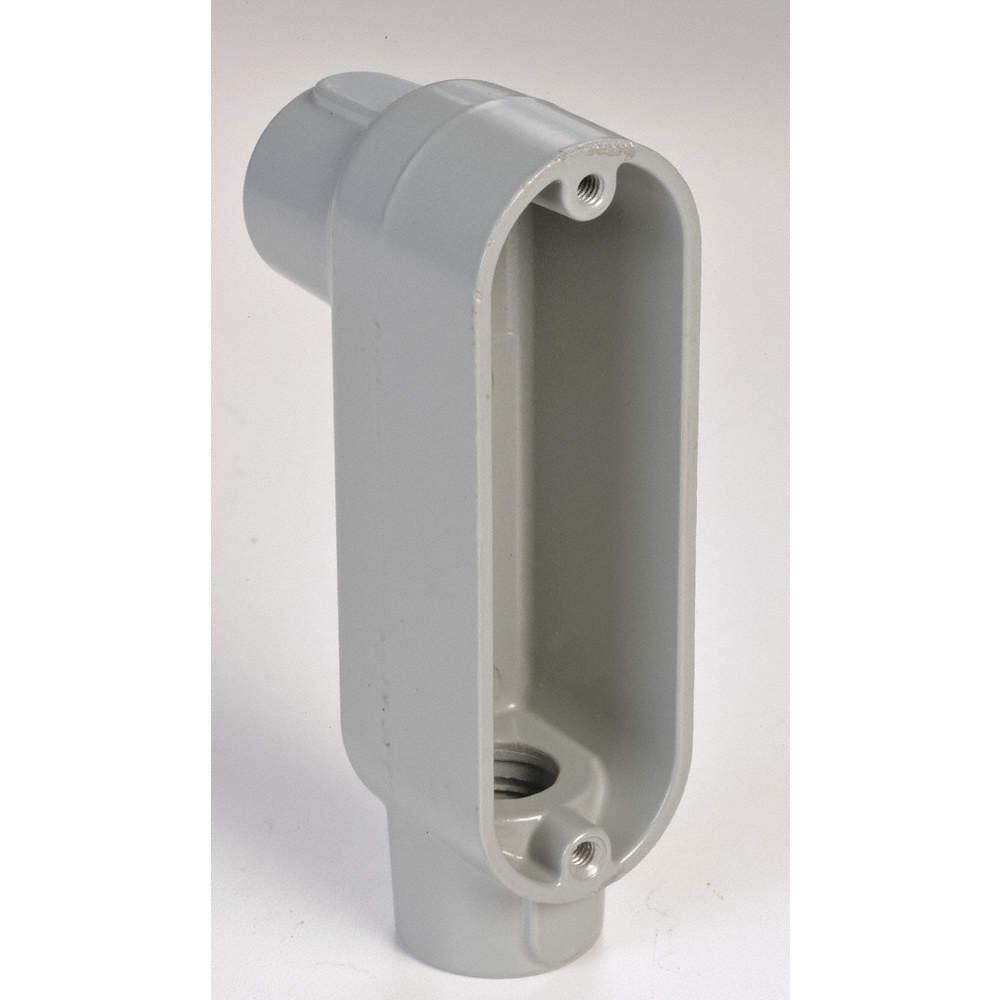

Conduit Outlet Body,Lb,1 In.
PI_Asset_1981511
Conduit Outlet Body,Lb,1 In.
PI_Asset_1981511
Double tap image to magnify
Conduit Outlet Body,Lb,1 In.
10V931_1
Conduit Outlet Body,Lb,1 In.
10V931_1

#934194-2Pkg Qty: 1

$38.63 pkg | $38.63 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Mar 26.
|

Technical Specifications

Key Specifications
Back Type
Flat
Hazardous Location Rating
Class I, Division 2
Body Capacity
11.8 cu in.
Hub Size
1 in.
Body Style
LB
Hub Style
Set Screw
Body Type
Conduit Outlet Body
Item
Conduit Outlet Body
Brand
APPLETON ELECTRIC
Material
Aluminum
Capacity
11.8 cu. in.
Material of Construction
Copper Free Aluminum
Color Family
Gray
Mfr. Part Number
LB100T-A
Conduit Outlet Body Capacity
11.8 cu in.
Number of Hubs
2
Conduit Outlet Body Hub Size
1 in.
Overall Height
2-13/16 in.
Conduit Outlet Body Hub Style
Not Threaded
Overall Length
6 in.
Conduit Outlet Body Material
Copper Free Aluminum
Overall Width
1-1/2 in.
Conduit Outlet Body Style
LB
Package Quantity
1
Conduit Outlet Body Type
Conduit Outlet Body
Shape
L
Connection Type
Set Screw
Shipping Weight
.55 lb.
Design Type
Form 85, Setscrew, Flat Back
Threaded / Not Threaded
Not Threaded
Finish
Powder Coated
Trade Size
1 in.
Form
Form 85
Type
Ordinary Location
Hazardous Location
No
General
Compatible Conduit Trade Size
1 in
For Use With
EMT
Compatible Conduit Type
EMT
Special Features
Triple Coat Epoxy Coating
Compatible Cover
K100-A, K100-CA
Standards
C22.2 No. 18.3, UL 514A, UL 514B
Connection Orientation
90°
Style of Hub
Set Screw

Product Description

Pull and splice wiring easily with this flat-back conduit outlet body. It is designed to provide greater cubic content for easier wire pulling, and additional room for splicing. It also fits flush and snug against flat surfaces for stable installation. Triple-coat epoxy coating.
