SNAP-TITE

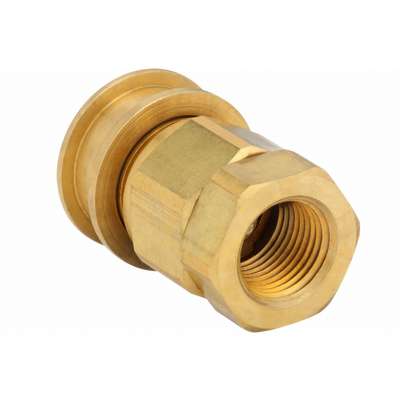

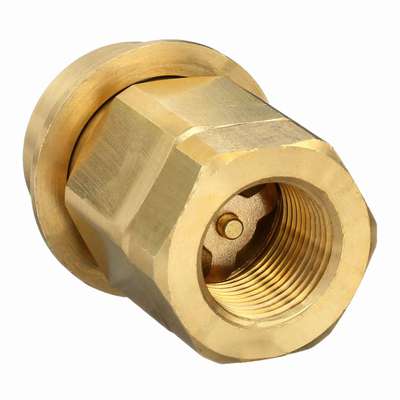

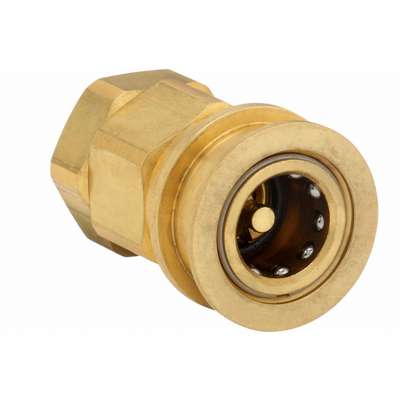

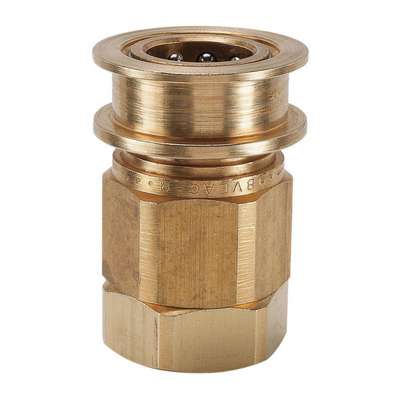

Hydraulic Quick Connect Hose Coupling, Socket, EA Series, Brass

Hover over image to magnify
Quick Connect,Socket,3/4",3/4"-
PI_Asset_1757607
PI_Asset_1764597
PI_Asset_1771954
Quick Connect,Socket,3/4",3/4"-
PI_Asset_1757607
PI_Asset_1764597
PI_Asset_1771954

#934026-1 | Pkg Qty: 1

$270.85 pkg | $270.85 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Brass
Package Quantity
1
Brand
SNAP-TITE
Seal Material
Nitrile
Connection Type
NPTF
Shipping Weight
.78 lb.
Fitting Type
Female NPTF
Sleeve Material
Brass
Item
Hydraulic Quick Connect Hose Coupling
Thread Size
3/4"-14
Mfr. Part Number
BVEAC12-12F
Valve Type
Poppet
General
Bearing Material
440 Stainless Steel
Includes Valve
Yes
Coupling Component
Socket
Max. Flow Rate
208.23 lpm
Coupling Locking Type
Sleeve
Max. Outside Dia.
1 57/64 in
Finish/Coating
Plain
Max. Working Pressure @ 70 F
1,500 psi
Hose Fitting Gender
Female
Overall Length
2 29/32 in
Includes Bearing
Yes
Series
EA
Includes Shut Off
Yes

Product Description

EA Series hydraulic quick-connect coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) for use in autoclave applications.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9340261
Quick Connect,Socket,3/4",3/4"-
 NameItemDescription
Grainger DropshipGrainger Dropship20LF04
UNSPSC CODESUNSPSC CODES27121701
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Quick Connect,
