SQUARE D

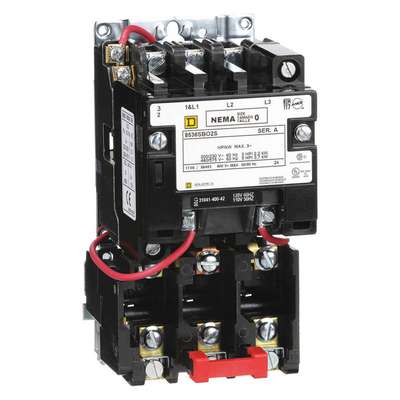

Square D Magnetic Motor Starter, 120V AC Coil Volts, NEMA Size: 0, Starter Type: NEMA
Hover over image to magnify
#933881-3 | Pkg Qty: 1
$620.13 pkg | $620.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accessory Group
D2
Hz
50/60
Action
Nonreversing
Item
Magnetic Motor Starter
Amps AC
18 A
Mfr. Part Number
8536SBO2V02S
Brand
SQUARE D
NEMA Enclosure Type
Open
Coil Volts
120 VAC
Number of Poles
3
Depth
4.22 in.
Pack Quantity
1
Enclosure NEMA Rating
No Enclosure
Shipping Weight
4.05 lb.
Enclosure Type
Open
Starter Type
NE mA
HP @ 3 Phase - 240 V
3 hp
Type
NEMA
HP @ 3 Phase - 480 V
5 hp
Width
4.53 in.
Height
6.77 in.
General
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 575V
5 hp
HP @ 3 Phase - 230V
3
HP @ 3 Phase 240V
3
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase 480V
5
HP @ 3 Phase - 460V
5
Standards
CSA Certified
HP @ 3 Phase - 480V
5 hp
Thermal Unit Code
D2
Product Description
Full-voltage starters start and stop 1- and 3-phase AC motors. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Open enclosure Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Provide Class 20 protection.
Expertly Selected Product Pairings
Documents
Item Barcode
Magnetic Motor Starter,Nema,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1H491 | Magnetic Motor |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Magnetic Motor |
