SIEMENS

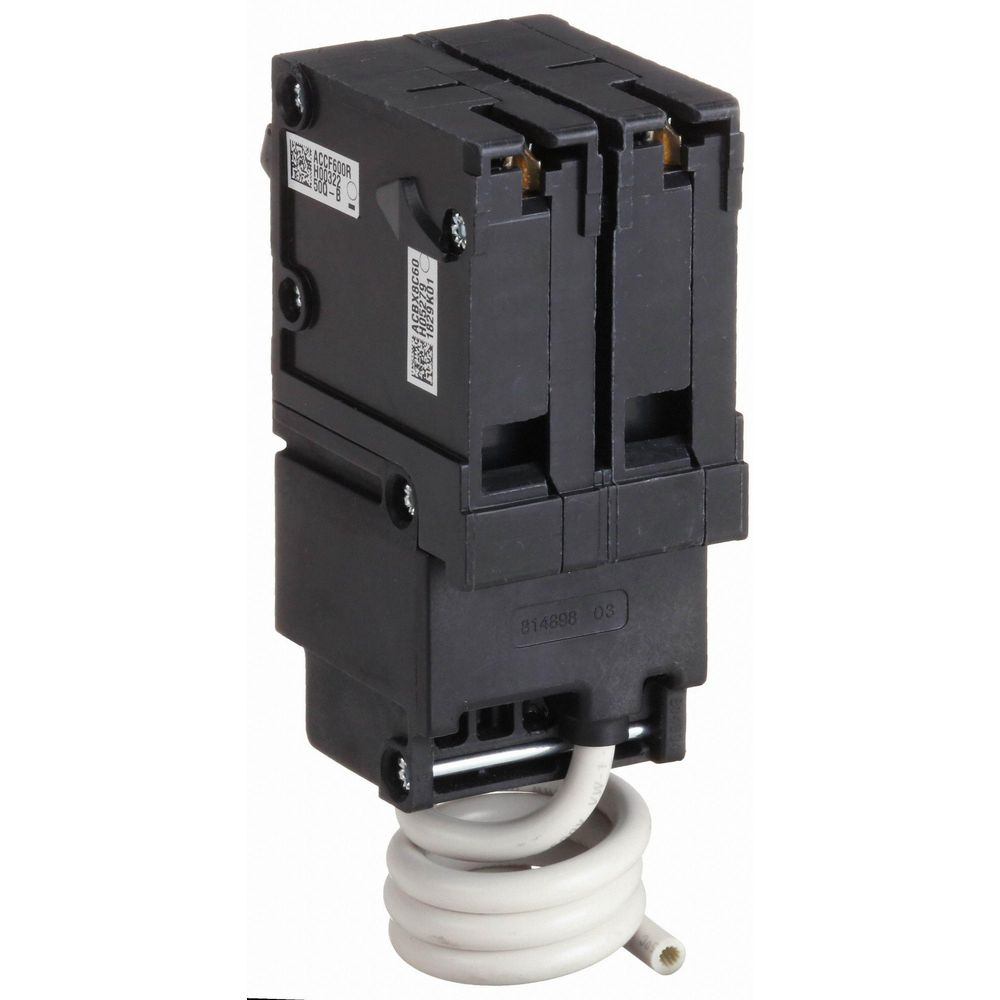

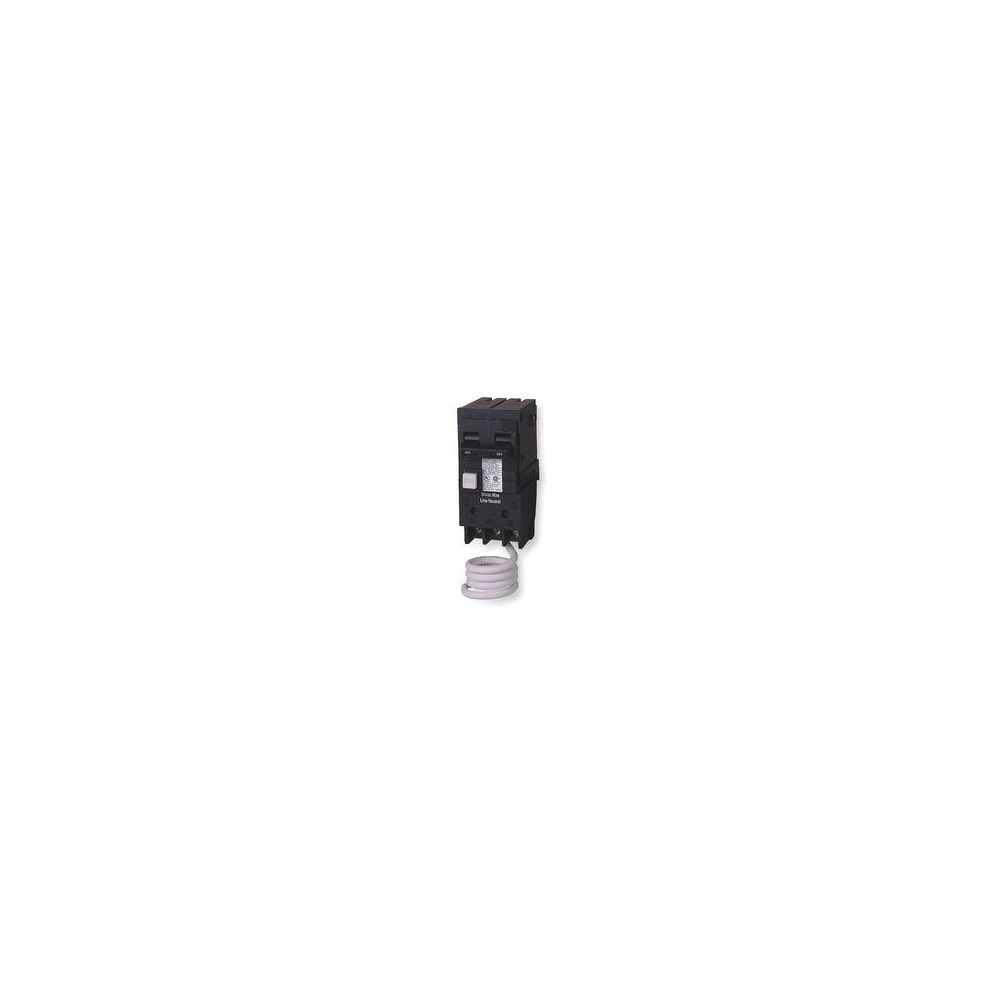

Siemens Miniature Circuit Breaker: 20 A Amps, 120/240V AC, Single Phase, 10kA at 120V AC, 2 Poles

Hover over image to magnify
Circuit Breaker,20A,Plug In,
PI_Asset_1767895
Circuit Breaker,20A,Plug In,
PI_Asset_1767895

#933876-7 | Pkg Qty: 1

$211.47 pkg | $211.47 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Jan 14 - Wed. Jan 15.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120VAC
Air @ 120 VAC
10kA
Maximum Wire Size
10 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
QF220A
Amperage
20 A
Minimum Wire Size
14 AWG
Amps
20 A
Number of Poles
2
Brand
SIEMENS
Package Quantity
1
Circuit Breaker Type
Ground Fault Circuit Interrupter (Class A - 5mA)
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Single
Depth
3 in.
Phase Connection
Any
For Use With
Siemens Load Centers
Series
QF
Frame Size
225A/QF
Shipping Weight
1 lb.
High Amp Trip Setting
20
Terminal Connection
Lug
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120 - 240VAC
Length
12.6 in.
Width
2 in.
General
Circuit Breaker Actuator
Toggle
Standards
CSA Certified, HACR Rated
Circuit Breaker Mounting Style
Plug In

Product Description

These Q series miniature circuit breakers plug into place in panelboards and EQ load centers and don't require bolting, so they're easier to install than bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
