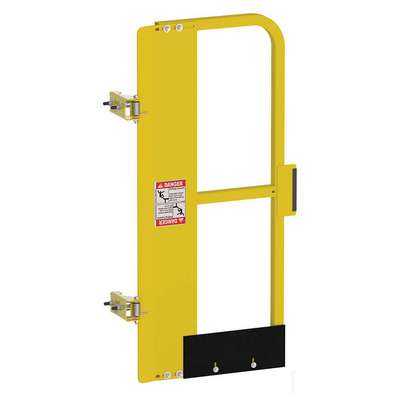

Ps Doors Single-Door Metal: Steel, For 22 3/4" to 26 1/2" Opening Width, 41 1/2" x 1 1/4", Adj
Hover over image to magnify
#933854 | Pkg Qty: 1
$596.92 pkg | $596.92 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PS DOORS
Mfr. Part Number
LSGF-24-PCY
Color Family
Yellow
Mounting Location
Pipe, Wall
Finish
Powder Coated
Package Quantity
1
Item
Safety Gate
Shipping Weight
28 lb.
Material
Steel
General
Adjustable Opening
22-3/4 in to 26-1/2 in
Gate Height
41 1/2 in
Adjustable Width Increment
3.75 in
Gate HxD
41 1/2 in x 1 1/4 in
Adjustable Width Increments
3 3/4 in
Gate Material
Steel
Adjustment Mechanism
Slot with Bolt
Gate Style
Adjustable
Arm Depth
41 1/2 in
Gate Swings
Left, Right
Assembled
Assembled
Gate Width
22 3/4 in to 26 1/2 in
Fits Max. Opening Width
26.5 in
In Use Height
3 1/2 ft
Fits Min. Opening Width
22.75 in
Includes
Mounting Hardware
Fits Opening Width Range
22 3/4 in to 26 1/2 in
Includes Mounting Hardware
Yes
For Maximum Railing Diameter
2 in
Installed Height
3.5 ft
For Maximum Railing Width/Depth
1 1/2 in
Safety Gate Component
Gate
For Opening Width
22 3/4 in to 26 1/2 in
Standards
1910.29, A14.3-2008 and MH28.3-2009, ANSI A1264.1-2007, OHSA 1910.28
Gate Depth
1 1/4 in
Swing Degree
180 °
Gate Finish
Powder Coated
Swing Direction
Left, Right
Product Description

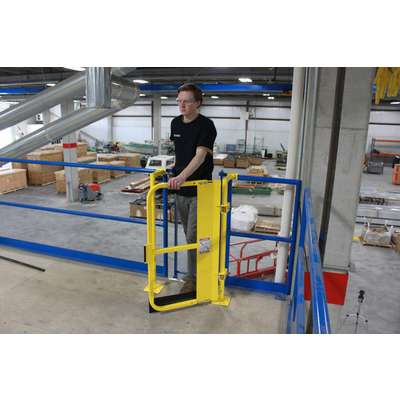

These self-closing safety gates are installed on platforms that are four or more feet from the ground. They are used in stairway passages or near ladders where workers need access to an area.
Expertly Selected Product Pairings
Item Barcode
Gate,22-3/4" To 26-1/2" Adj.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 422L59 | Gate,22-3/4" to 26-1/2" |
 | UNSPSC CODES | 30172001 | |
 | VMRS (ATA) CODES | 053-006-009 | Gate,22-3/4" to 26-1/2" |
