CONCENTRIC

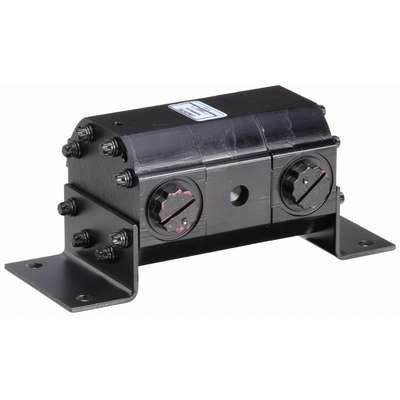

7.55" x 2.99" x 3.26" Permananent Molded Cast Iron Rotary Gear Hydraulic Flow Divider

Hover over image to magnify
Divider,Flow,5-10 Gpm
PI_Asset_1496126
Divider,Flow,5-10 Gpm
PI_Asset_1496126

#933726-1 | Pkg Qty: 1

$357.01 pkg | $357.01 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CONCENTRIC
Package Quantity
1
Function
Split the Flow from a Single Pump Source to a Pair of Matched Cylinders or Fluid Motors, Synchronize Two Parallel Motions Hydraulically than Mechanically
Shipping Weight
8.6 lb.
Item
Hydraulic Flow Divider
Valve Type
Integral Differential Relief
Mfr. Part Number
1020076
General
Displacement (cc/rev)
0.258 cc/rev
Max. RPM
4,500 RPM
Gears
11 Tooth Hardened Steel
Operating Pressure (PSI)
2,300 psi
Max. Outer Pressure (PSI)
4,500 psi
RPM Range
2000 to 4500

Product Description

Hydraulic Flow Divider, Rotary Gear, Integral Differential Relief Valve Type, Flow Rate (GPM) 5-10, Displacement (cc/rev) 0.258, Port Size Inlet7/8 -14, Port Size Outlet7/8 -14, Operating Pressure (PSI) 2,300, RPM Range 2000 to 4500, Max. Outer Pressure (PSI) 4,500, Permananent Molded Cast Iron Body Material, 11 Tooth Hardened Steel Gears, Length7.55 in, Width2.99 in, Height3.26 in
