FUJI ELECTRIC

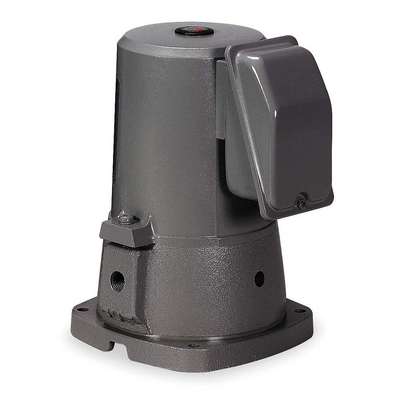

Oil Coolant Pump: 1/4 hp HP, 3 Phase, 230/460, Cast Bronze, Cast Iron
Hover over image to magnify
#933400-8 | Pkg Qty: 1
$755.87 pkg | $755.87 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
10-1/2
Pack Quantity
1
Body Material
Cast Iron
Phase
3
Brand
FUJI ELECTRIC
RPM
3440 RPM
GPM of Water @ 150 Ft. of Head
28-1/2
Shaft Material
Carbon Steel
Impeller Material
Cast Bronze
Shipping Weight
25.8 lb.
Item
Oil Coolant Pump
Voltage
230/460
Mfr. Part Number
VKN-073A-4Z
General
Application
Circulation of Coolant, Spraying of Cutting Oil in. all Types of Machines, Except Grinders
Includes
Ceramic stationary seal face, carbon graphite rotating seal face, and steel springs
Compatible Discharge Pipe Size
1/2 in
Intake and Discharge Size
1/2 in , 1/2 in
Compatible Intake Pipe Size
1/2 in
Maximum Feet of Head
34 ft
Compatible with Media Type
Cutting Oil, Non-Flammable Liquids
Maximum Media Temperature
104 Degrees F
Flow Rate @ 10 ft of Head (Maximum, Water)
32 gpm
Nameplate Voltage
230/460V AC
Flow Rate @ 15 ft of Head (Maximum, Water)
28.5 gpm
Priming
Self-Priming
Flow Rate @ 20 ft of Head (Maximum, Water)
22 gpm
Pump Housing Material
Cast Iron
Product Description
Oil Coolant Pump, Suction, 1/4 hp HP, 3 Phase, 1/0.5 Amps, Voltage 230/460, Length9 1/8 in, Width5 29/32 in, Height9 1/16 in, Bolt Circle Dia.6.3 in, Inlet/Outlet1/2 in, 3,440 RPM RPM, GPM of Water @ 1 Ft. of Head, Shut-Off (Ft.) 34, Impeller Material Cast Bronze, Body Material Cast Iron, Max. Temp. 104 Degrees F, Shaft Material Carbon Steel
Expertly Selected Product Pairings
Item Barcode
Pump,Oil Coolant,1/4hp
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3P741 | Pump,Oil Coolant,1/4hp |
 | UNSPSC CODES | 40151504 | |
 | VMRS (ATA) CODES | 053-006-009 | Pump,Oil Coolant,1/4hp |
