BRYANT

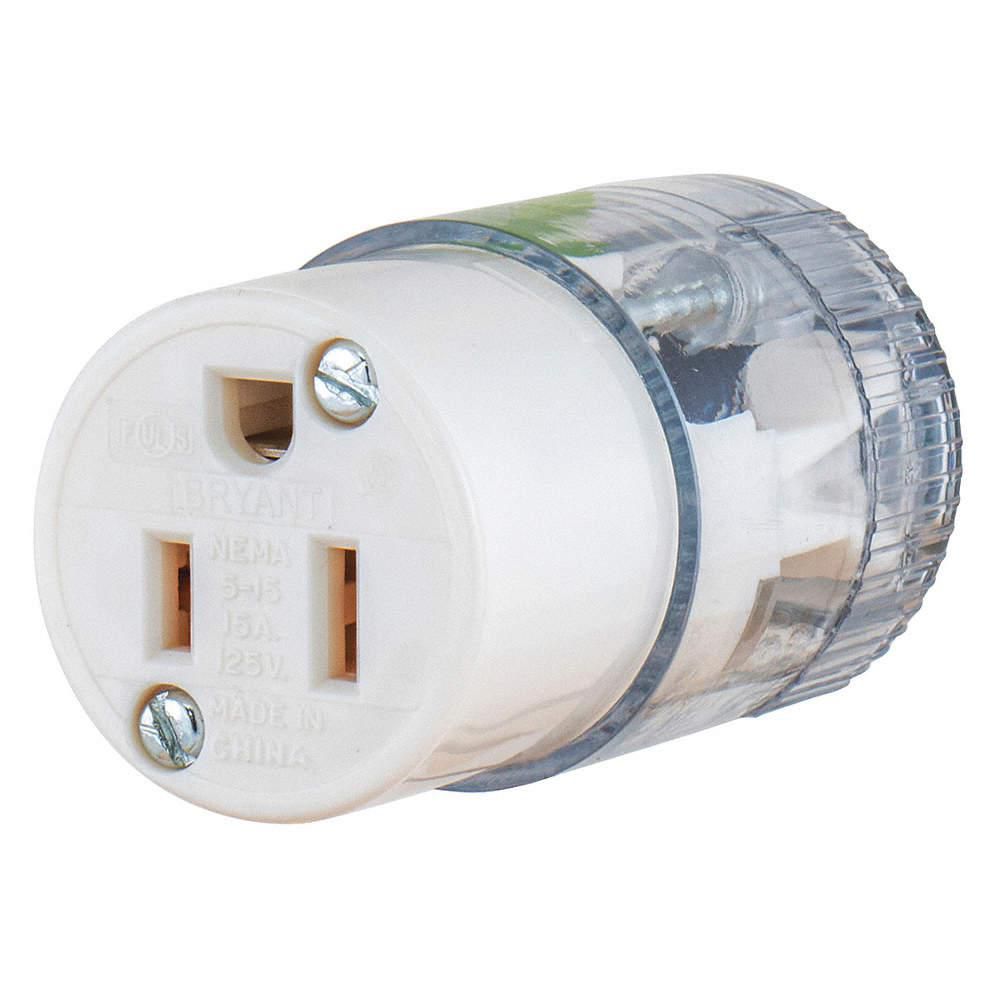

Bryant 15 Amp Hospital Grade Standard Straight Blade Connector, 5-15R NEMA Configuration, Transparent
Hover over image to magnify
#933212-7 | Pkg Qty: 1
$24.47 pkg | $24.47 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Minimum Operating Temperature
-40 °C
Amps
15 A
Minimum Wire Size
18 AWG
Antimicrobial
No
NEMA Configuration - Plugs & Connectors
5-15
Brand
BRYANT
NEMA Plug Configuration
5-15R
Color Family
Clear
NEMA Receptacle Configuration
5-15R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Copper
Number of Wires
3
Cord Size
0.245 in to 0.655 in
Overall Length
2.95 in.
Corrosion Resistant
No
Package Quantity
1
Current Rating
15 A
Phase
Single
Grade
Hospital Grade
Power Indicating Light
No
Grounding
Grounded
Power Indicator
No
Housing Color
Clear
Shipping Weight
.15 lb.
Housing Material
Thermoplastic Elastomer
Standards
CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, UL 498
IP Rating
Not Rated
UL 94 Flammability Rating
HB
Item
Straight Blade Connector
Voltage
125VAC
Material
Polycarbonate
Voltage Rating
125V AC
Maximum Operating Temperature
60 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
10 AWG
Wiring Style
Standard
Mfr. Part Number
8269T
General
Amps - Plugs and Receptacles
15 A
Special Features
Dust Resistant
Grade - Plugs and Receptacles
Hospital
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Product Description
Designed with tough, impact- and chemical-resistant nylon housing. Features internal Triple Gripper® cord clamp that automatically centers the cord and secures it. Dust seal surrounds cord to help prevent moisture and contaminants from entering the wiring chamber
Item Barcode
Blade Connector,Transparent,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49YY20 | Blade Connector, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Blade Connector, |
