BOSCH

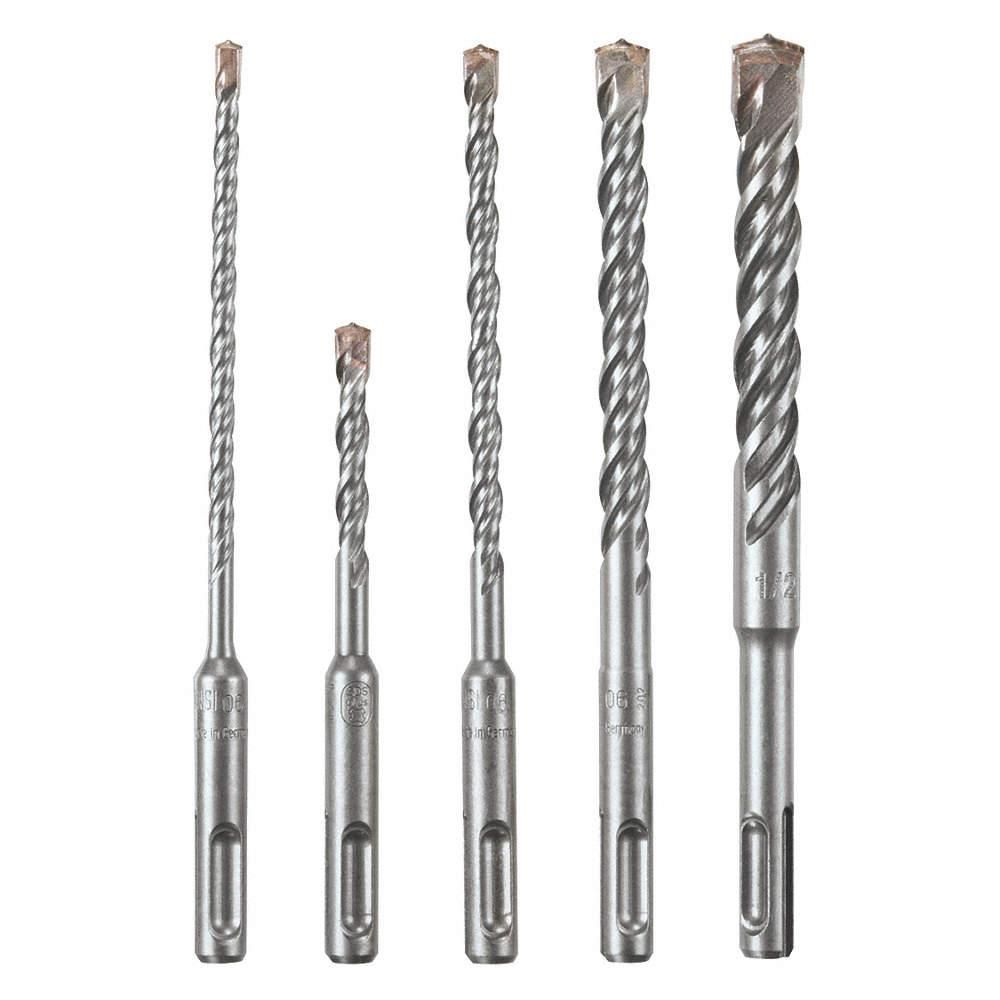

Bosch Rotary Hammer Drill Set, SDS Plus, 5 Number of Drill Bits, Carbide Tipped

Hover over image to magnify
Hammer Drill Bit Set,4-Flute,5
PI_Asset_1496049
Hammer Drill Bit Set,4-Flute,5
PI_Asset_1496049

#933163-9 | Pkg Qty: 1

$30.79 pkg | $30.79 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
BOSCH
Impact Rated
No
Cutting Direction
Right
Item
Rotary Hammer Drill Set
Decimal Equivalents
0.1875, 0.25, 0.375, 0.5
Mfr. Part Number
HCK005
Designed For
Rotary Hammer Drill
Number of Drill Bits
5
Drill Bit Case Type
Plastic Tube
Number of Pieces
5
Drill Bit Dimension Type
Fractional Inch
Overall Length
6 in.
Drill Bit Material
Carbide Tipped
Package Quantity
1
Drill Bit Size
3/16 in. to 1/2 in.
Shank Diameter
3/16 in., 1/4 in., 3/8 in., 1/2 in.
Drill Bit Sizes
3/16 in. to 1/2 in.
Shank Shape
SDS Plus
Drill Bit Sizes Included
3/16 in. x 4 in. x 6 in., 1/4 in. x 2 in. x 4 in., 1/4 in. x 4 in. x 6 in., 3/8 in. x 4 in. x 6 in., 1/2 in. x 4 in. x 6 in.
Shipping Weight
.71 lb.
Flute Length
4 in.
Sizes Included
3/16 in. x 4 in. x 6 in., 1/4 in. x 2 in. x 4 in., 1/4 in. x 4 in. x 6 in., 3/8 in. x 4 in. x 6 in., 1/2 in. x 4 in. x 6 in.
Flute Type
Spiral
General
Application
Concrete, Masonry
Measurement System
Fractional Inch
Drill Bit Grouping
Set
Number of Cutter Heads
4
Finish - Machining
Bright (Uncoated)
Number of Drill Bits
5
For Tool Type
Rotary Hammer Drill
Percussion Rated
Yes
Includes
Case
Shank Type - Machining
SDS Plus
Largest Drill Bit Size
1/2 in
Smallest Drill Bit Size
3/16 in
Material - Machining
Carbide Tipped
Standards
ANSI

Product Description

These sets contain multiple concrete and masonry drill bits in different sizes. The bits have SDS-Plus shanks that prevents them from slipping in high-torque drilling applications when creating holes in concrete and masonry. The bits install into compatible drills with SDS-Plus chucks, and they can be changed in the chucks with one hand. SDS-Plus chucks have spring-loaded balls that fit into the grooves on the bits' shanks to hold the bits in place in the chucks.
