SQUARE D

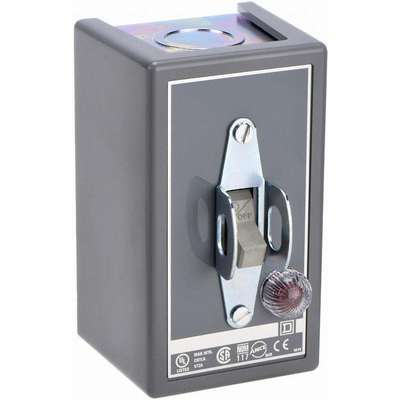

Square D Manual Motor Switch, Toggle, 1 Enclosure NEMA Rating
Hover over image to magnify
#933017-1 | Pkg Qty: 1
$175.98 pkg | $175.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
30 A
Height
4-1/4 in.
Brand
SQUARE D
Item
Manual Motor Switch
Depth
2-3/4 in.
Mfr. Part Number
2510KG1A
Description/Special Features
115 VAC Pilot Light
Number of Poles
2
Enclosure NEMA Rating
1
Package Quantity
1
Enclosure Type
Enclosed
Phase Loss Sensitivity
No
HP @ 1 Phase - 120 V
2 hp
Shipping Weight
.85 lb.
HP @ 1 Phase - 230 V
2 hp
Starter Type
NE mA Style
HP @ 3 Phase - 240 V
2 hp
Warranty
2ACC6
HP @ 3 Phase - 480 V
3 hp
Width
2.88 in.
General
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 480V
3 hp
HP @ 1 Phase - 230V
2 hp
HP @ 3 Phase - 575V
3 hp
HP @ 3 Phase - 230V
2
Operator
Toggle
HP @ 3 Phase - 240V
2 hp
Pilot Light
Yes
HP @ 3 Phase - 460-575V
3 hp
Standards
CE, CSA, UL
HP @ 3 Phase - 460V
3
Product Description
Nonreversing Square D 2-Pole NEMA Manual Motor Switch provides On/Off control of 1- or 3-phase AC motors where overload protection is not required or is provided separately. Use in small machine tools, pumps, fans, conveyors, and electrical machinery, and also for nonmotor loads such as resistance heaters.
Item Barcode
Manual Motor Switch,30A,600VAC/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2BV87 | Manual Motor Switch,30A, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Motor Switch,30A, |
