BUSSMANN

Bussmann Fuse Block, Industrial, 61 to 100 A, Fuse UL Class T, 600 VAC/DC

Hover over image to magnify

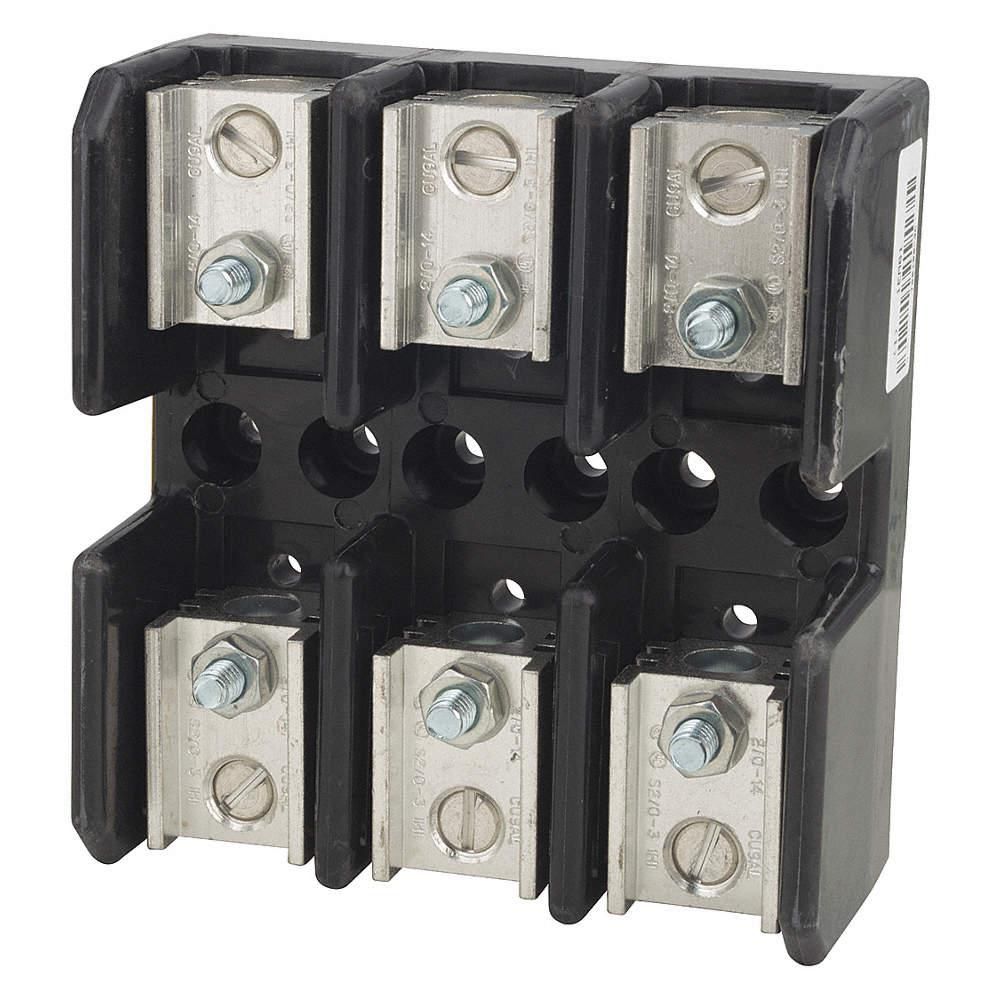

Fuse Block,61 To 100A,T,3 Pole
Fuse Block,61 To 100A,T,3 Pole
Double tap image to magnify
Fuse Block,61 To 100A,T,3 Pole
Fuse Block,61 To 100A,T,3 Pole

#932996-7Pkg Qty: 1

$228.67 pkg | $228.67 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
AC Voltage Rating
600 VAC
Fuse Type
Industrial
Amp Range of Fuse Block or Holder
65 to 100A
Fuse UL Class
T
Amps AC
100
Height
2 in.
Brand
BUSSMANN
Indicating / Nonindicating
Nonindicating
Connector Type
Box Lug
Item
Fuse Block
DC Voltage Rating
Not Rated
Length
3 in.
Diameter
13/16 in.
Mfr. Part Number
T60100-3C
For Fuse Series
JJS, LPT
Mounting Style
Bolt-Down
For Fuse Size
2-15/16 in. L x 13/16 in. dia, 2-61/64 in. L x 3/4 in. dia
Number of Poles
3
Fuse Block Design
Open
Package Quantity
1
Fuse Block/Fuse Holder Type
Fuse Block
Series
T
Fuse Block/Holder AC Voltage Rating
600 VAC
Shipping Weight
1.6 lb.
Fuse Block/Holder DC Voltage Rating
Not Rated
Voltage Rating
600 VAC/DC
Fuse Dimensions
3 in.L x 2 in.H x 4-1/2 in.W
Width
4-1/2 in.
Fuse Holder Code
BN
Wire Range
14 to 2 AWG
Fuse Length
2-15/16 in.
Wire Size
14 to 2/0 AWG
General
Amp Range
61 to 100 A
Fuse Block Style
Nonrejection
Compatible Fuse Series
A6T, JJS, JLLS, LPT
Fuse Block or Fuse Holder Type
Fuse Block
Features
Space Saver
Fuse Block or Holder AC Voltage Rating
600VAC
Fits Fuse Type
Industrial
Visual Indication
Nonindicating

Product Description

These fuse blocks are compatible with UL Class T fuses for overcurrent protection in electrical feeders and branch circuits where there's minimal space for installation.

UL Class and midget fuse blocks accept fuses sized and rated according to UL Class or midget specifications. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit. These fuse blocks are either bolted down or mounted on a DIN rail to hold them in place. They're commonly paired with fuse box covers to enclose the fuses and prevent accidental contact. They are nonindicating, so there's no visual signal when a fuse is blown.

Documents

Bussmann Class T Fuse Block Technical Data Sheet
