TITAN PRO

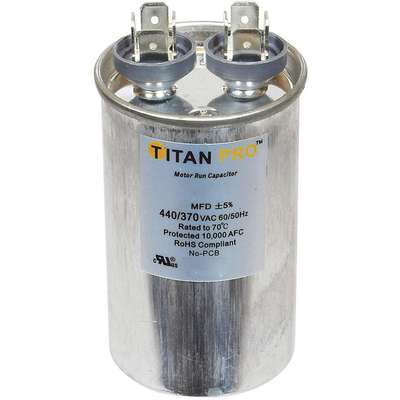

Titan Pro Round Motor Run Capacitor, 5 Microfarad Rating, 370-440VAC Voltage
Hover over image to magnify
#932921-1 | Pkg Qty: 1
$3.50 pkg | $3.50 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
TITAN PRO
Number of Pieces
1
Capacitor Shape
Round
Number of Terminals
2
Case Height
2-3/16 in.
Overall Depth
1-3/4 in.
Case Material
Aluminum
Overall Height
2-7/8 in.
Connection Type
Quick Connect
Overall Width
1-3/4 in.
Construction
Aluminum Case with Steel Cover
Pack Quantity
1
Cover Material
Steel
Shape
Round
Diameter
1-3/4 in.
Shipping Weight
.25 lb.
Hz
60/50
Temperature Range
-40 deg. C to 70 deg. C
Item
Motor Run Capacitor
Terminals
1/4 in. Male
Mfr. Part Number
TRCF5
Voltage
440/370 VAC
General
Capacitor Voltage
440/370V AC
Motor Capacitor Type
Motor Run Capacitor
EIA Tolerance Code
A
Standards
UL Recognized (E185318)
EIA UL Base
A
Terminal Designations
Standard
For Use With
Electric Motors
Terminal Gender
Male
Microfarad Rating
5
Terminal Tab Width
1/4 in
Product Description
Run Capacitors
- Temp. range: -40° to 70°C The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals. UL Recognized.
